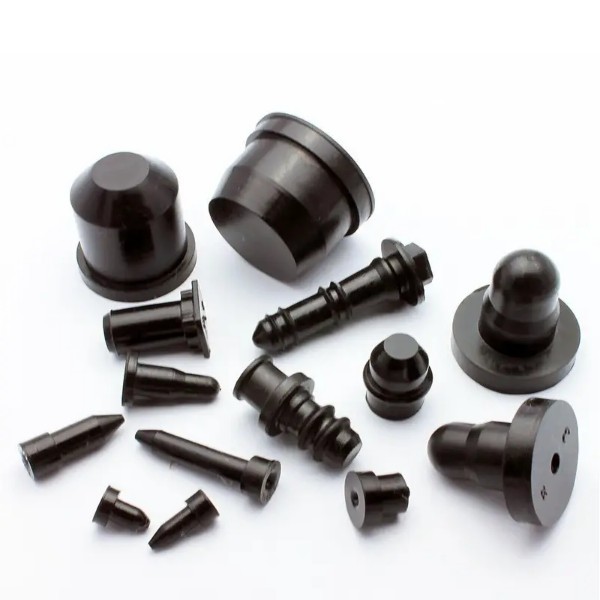

EPDM Seal Production Process: A Detailed Overview

The manufacturing of EPDM (Ethylene Propylene Diene Monomer) seals involves a precise and multi-stage process designed to ensure high-quality, durable, and reliable seals. This guide meticulously details each step.

1. Raw Material Preparation

EPDM rubber, a copolymer of ethylene, propylene, and a non-conjugated diene, forms the base material for these seals. Its inherent resistance to weathering and aging makes it suitable for a wide range of applications. Before processing begins:

Material Selection and Testing: The quality of the final product directly depends on the quality of the raw materials. Stringent testing procedures are implemented to ensure that the EPDM rubber, fillers (e.g., carbon black enhancing strength and UV resistance), vulcanizing agents (e.g., zinc oxide initiating crosslinking), and other additives (e.g., plasticizers for flexibility, antioxidants for longevity) meet precise specifications. Tests commonly employed include rheological measurements, material spectroscopy (FTIR), and chemical analysis to confirm the purity and properties of each component.

Precise Formulation: The exact proportions of each ingredient are meticulously determined and precisely measured to achieve the desired properties in the final EPDM seal. Variations in the compound's formulation directly impact the performance characteristics of the finished product.

2. Mixing and Compounding

The selected raw materials are blended in a high-shear mixing device, typically an internal mixer (closed-mix) or an open mill, to create a homogenous compound. Careful process control is crucial:

Controlled Temperature: The mixing process is conducted within a precise temperature range (60-80°C) to prevent premature crosslinking or degradation of the EPDM rubber. Maintaining this temperature range is vital to ensure uniformity throughout the compound.

Additive Dispersion: This step ensures complete and uniform distribution of fillers, vulcanizing agents, and other additives within the EPDM matrix. Inconsistent mixing can lead to variations in the physical properties of the final seal, potentially causing premature failure.

3. Molding

The mixed EPDM compound is then shaped into the desired seal profile, typically using compression molding:

Compression Molding: This method involves placing the compounded EPDM into a specifically designed mold cavity. Heat and pressure are then applied simultaneously using a press to cure the rubber to the mold's shape. Compression molding is particularly effective for producing complex geometries and intricate designs. The parameters of pressure and temperature are carefully monitored and controlled to avoid defects.

4. Vulcanization (Curing)

Vulcanization, or curing, is a critical step that irreversibly transforms the thermoplastic EPDM into a thermoset elastomer, creating the desired mechanical properties.

Thermal Curing: This process involves heating the molded EPDM to a temperature of approximately 170 ± 5°C for 5-6 minutes. This heat initiates the chemical crosslinking between the polymer chains, creating a strong and resilient structure. The specific temperature and duration are optimized based on the formulation and desired characteristics of the final seal.

5. Post-Processing and Quality Control

Following vulcanization, several quality control steps are implemented:

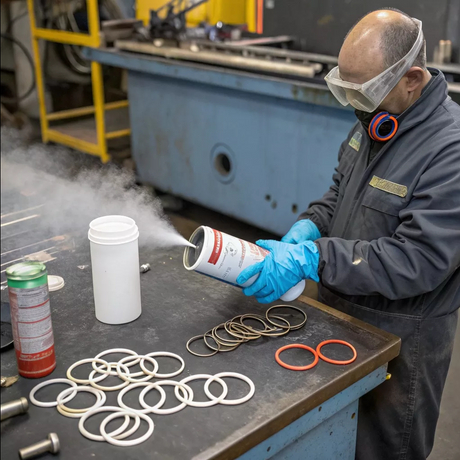

Trimming: Excess flash or material beyond the desired seal dimensions is carefully removed to achieve the precise final shape and size.

Dimensional Inspection: This verifies the seal’s conformity to specifications. Precise measurements are taken to ensure that the dimensions fall within acceptable tolerances.

Pressure Testing: The integrity and sealing capability of each seal are tested by subjecting them to defined pressure levels.

Performance Testing: Additional tests (e.g., tensile strength, compression set, and chemical resistance) are employed to assess the overall performance of the finished seal according to the intended application requirements.

By adhering to these precise steps and employing rigorous quality control measures, manufacturers can produce high-quality EPDM seals that meet demanding performance standards and offer superior durability even under extreme temperature conditions (-50°C to 150°C).
