How Should Die-Cut MPP Foam Pads Be Specified for EV Batteries?
在为电动汽车电池选择模切式 MPP 泡沫垫时，应如何进行规格确定呢？
A good MPP material can still become a poor production part when loose tolerances, incorrect adhesive or difficult liner removal causes pad misalignment on the battery line.

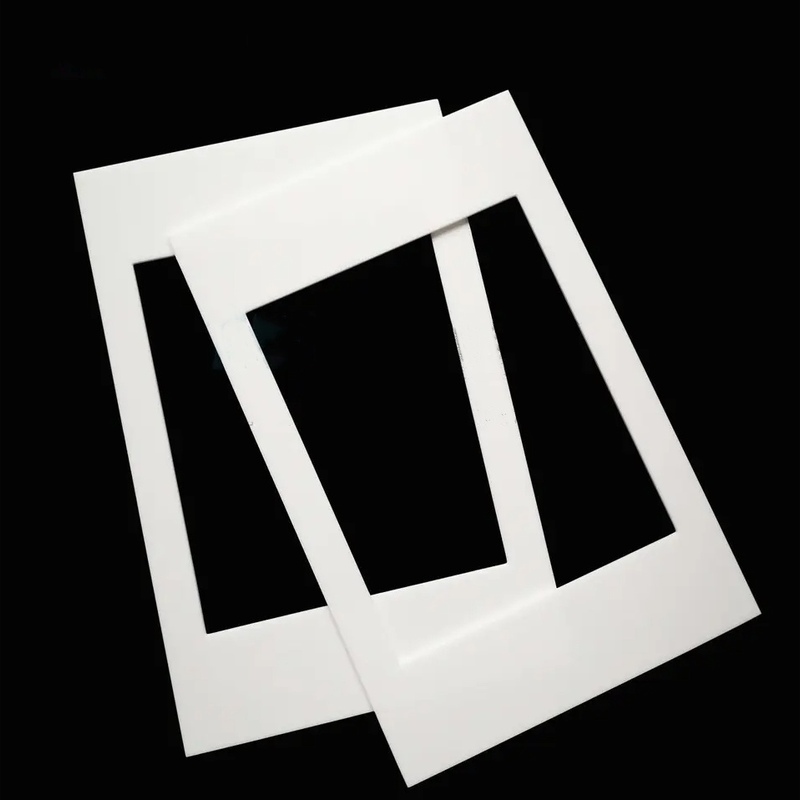

Specify the finished die-cut MPP foam pad as an assembly component, not only as a raw foam sheet. Dimensions, thickness, critical holes, adhesive coverage, liner design and packaging should all be controlled from the drawing.
Which Tolerances Matter Most on an MPP Foam Pad?
Applying unnecessarily tight tolerances to every dimension raises conversion cost, while loose tolerances around critical features can disrupt battery assembly.
Separate critical-to-function dimensions from noncritical outer-profile dimensions. Pay particular attention to overall thickness, holes, slots, edge distance and features that locate against cells, cooling plates or module structures.
ASTM D3575 covers test methods for flexible cellular materials made from olefin polymers and emphasizes that measured material data applies under the specific test conditions used.[1]
Drawing Item | Why It Matters |
Thickness | Controls compression and stack-up |
Outer Profile | Controls fit inside the module |
Hole Position | Prevents interference with fasteners and vents |
Adhesive Area | Controls positioning and removal |
Liner Tab | Affects production-line handling |
Should MPP Foam Pads Have Adhesive?
Adding adhesive everywhere can increase cost, change flammability behavior and make rework harder.
Use adhesive only where it improves positioning or assembly stability. Options can include one-side PSA, selective adhesive zones or non-adhesive pads retained by the mechanical stack.
Saint-Gobain notes that adhesive, liner and tab construction should be selected together because they affect flame behavior, handling, cost and qualification.[2]
Why Does Release-Liner Design Matter?
A pad that is easy to manufacture but difficult for operators or automation to peel can slow the battery assembly line.
Specify liner split, finger lift, pull tab or staged release when the part geometry requires controlled installation.
Battery compression-pad application guidance from Saint-Gobain similarly treats liner removal and adhesive configuration as part of the pad design rather than an afterthought.[3]
What Should Be Included in an MPP Foam RFQ Drawing?
Sending only a PDF outline without material, thickness and adhesive requirements forces the converter to make assumptions.
Include CAD geometry, thickness, tolerance, material grade, adhesive zones, liner direction, quantity, packaging and inspection requirements.
For new battery programs, prototype parts should be checked in the real assembly fixture before mass-production tolerances are frozen.
Need a Die-Cut MPP Foam Quote?
Send Fuqiang your 2D/3D drawing, material thickness, adhesive requirement, dimensional tolerances and annual volume. We can review the converting process and prepare prototype pads before production tooling is finalized.
FAQ
Can MPP foam be die cut?
Yes. MPP foam can be converted into pads, strips and custom profiles when the cutting process is matched to the foam thickness and geometry.
Can adhesive be added to MPP foam?
Yes, but the adhesive should be selected for the substrate, temperature, assembly process and required flame or aging performance.
How tight should MPP foam tolerances be?
There is no universal tolerance. Critical locating, thickness and interface dimensions should be tighter than noncritical cosmetic edges when the application allows it.
Can a pull tab be added to the liner?
Yes. Finger lifts, split liners and pull tabs can make pad placement easier in manual or automated assembly.
What file should I send for a custom foam pad?
A dimensioned drawing plus DXF, DWG or STEP geometry is helpful, together with material, thickness, adhesive and inspection requirements.
A 15-Year Automotive Wire Harness and Precision Conversion Perspective
After 15 years working with automotive converted components, I recommend treating adhesive, liner and packaging as part of the engineering drawing. A foam pad that performs well in the laboratory still has to install quickly and consistently on the production line.
