How Should Die-Cut Mica Insulation Gaskets Be Designed Around EV Battery Busbar Bolt Holes?

A poorly designed mica cutout around a busbar bolt hole can expose conductive edges, reduce creepage distance, crack during tightening, interfere with the electrical contact surface, or allow the bolt and washer to bridge insulation unexpectedly.

The safest approach is to design the mica aperture around the complete bolted joint—not the bolt diameter alone—including the washer OD, busbar contact area, positional tolerance, electrical potential, torque stack, creepage requirement, and die-cut capability. The mica gasket should insulate exactly where insulation is required while leaving intentional electrical contact zones completely free of insulating material

How Large Should the Mica Cutout Be Around a Busbar Bolt Hole?

If the opening is too small, mica can become trapped under the washer or contact interface; if it is too large, exposed metal can reduce electrical separation and create a potential flashover or tracking path.

Size the cutout from the complete functional interface: washer OD, bolt head or nut, conductive contact patch, assembly misalignment, mica tolerance, and required insulation distance. IEC 60664-1 provides the general framework for determining clearances, creepage distances, and solid-insulation requirements for equipment up to 1,500 VDC.^[1]

For an EV battery busbar joint, start by identifying whether the bolt, washer, insert, and adjacent busbar are at the same electrical potential or different potentials. If the washer must make electrical contact with the busbar, the mica must stay completely outside that contact footprint. If the fastener must remain electrically isolated from nearby conductive structures, the gasket geometry may require a larger insulating annulus, shoulder feature, or separate insulating washer.

There is no universal “bolt diameter + 2 mm” rule. The final radial insulation width depends on system voltage, pollution environment, material system, altitude, surface geometry, OEM requirements, and the complete pack architecture.

How Should Mica Thickness, Edge Distance, and Adhesive Be Designed?

A bolt hole placed too close to the mica edge can tear or crack during die cutting and assembly, while an excessively thick or rigid gasket can change the bolted-joint stack and reduce stable clamping of the busbar connection.

Select mica thickness and edge geometry from dielectric requirements, thermal exposure, mechanical support, bolt torque, available stack height, and manufacturing tolerance. Mica is widely used in EV battery packs around busbars and wire harnesses because it combines high-temperature resistance with electrical insulation and can be punched into custom shapes.^[2]

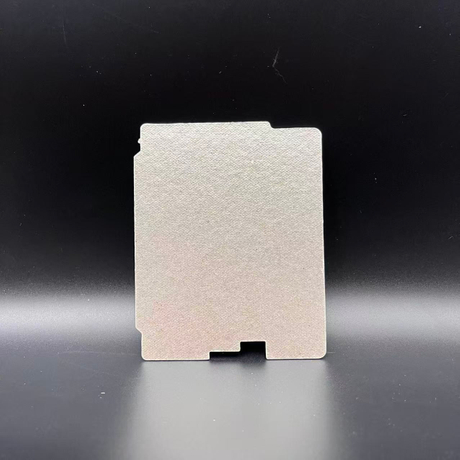

Around bolt holes, avoid narrow mica ligaments, sharp internal corners, and unsupported thin bridges where possible. Rounded cutouts and sufficient material between the aperture and the outside edge reduce stress concentration and improve die-cut stability.

If pressure-sensitive adhesive is used, create an adhesive keep-out area around intentional metal-to-metal contact surfaces. Adhesive squeeze-out under the washer or terminal interface can contaminate the electrical joint, alter clamping pressure, or increase contact resistance.

Mersen's EV busbar design guidance shows that electrical insulation layers, conductors, adhesives, screw-down connections, and rigid insulation must be considered together in high-voltage laminated busbar assemblies.^[3]

How Should a Die-Cut Mica Busbar Gasket Be Validated Before Production?

A gasket that fits perfectly in CAD can still fail in production because bolt-hole position, busbar stamping tolerance, washer movement, adhesive placement, mica die-cut tolerance, and assembly torque all stack together.

Validate the gasket using worst-case dimensional conditions and the real busbar-fastener assembly before releasing the die-cut tool. The review should include minimum insulation coverage, maximum contact-zone clearance, gasket positioning, torque compression, electrical withstand, thermal exposure, vibration, and post-test visual inspection.

A practical prototype review should compare the minimum and maximum busbar-hole position, mica-hole position, washer OD, fastener position, and gasket edge location. The tolerance stack is more important than the nominal CAD dimensions.

Mica is also used at pack level around busbars, wiring harnesses, module barriers, and enclosure structures, where it may need to withstand both electrical stress and severe thermal-runaway exposure.^[4]

Need a Custom Die-Cut Mica Busbar Insulation Gasket?

For a prototype review, provide the busbar drawing, bolt and washer dimensions, system voltage, mica thickness target, gasket outline, adhesive requirement, minimum insulation distance, torque specification, operating temperature, and annual quantity.

A STEP/DXF drawing of the actual busbar and fastener stack is usually more useful than specifying only the mica hole diameter.

FAQ

Should the Mica Hole Match the Busbar Bolt Diameter?

No. The cutout normally needs to consider the bolt, washer or nut, intentional contact area, assembly tolerance, and required insulation coverage—not only the bolt shank diameter.

Can Mica Be Installed Under a Busbar Washer?

Only if the electrical and mechanical joint is specifically designed for it. If the washer must create a conductive clamping interface with the busbar, mica should normally stay outside that required contact area.

How Much Creepage Distance Is Needed Around an EV Busbar Bolt?

There is no universal value. Required creepage depends on working voltage, material, pollution degree, surface geometry, altitude, OEM requirements, and the applicable insulation-coordination standard.

Why Does Mica Crack Around Die-Cut Bolt Holes?

Common causes include narrow edge distance, sharp internal geometry, unsuitable material thickness, poor die condition, unsupported assembly, and excessive mechanical loading around the fastener.

Should Adhesive Cover the Entire Mica Gasket?

Not always. Adhesive should be kept away from electrical contact surfaces where squeeze-out could contaminate the busbar joint or alter contact resistance.

Can the Same Mica Gasket Be Used for 400V and 800V Battery Packs?

Not automatically. The gasket geometry, thickness, creepage, clearance, thermal exposure, and dielectric validation should be reviewed against the actual maximum working voltage and pack design.

15-Year Automotive Wire Harness and Battery Insulation Perspective

Based on 15 years of automotive wire harness and high-voltage component experience, I would never release a mica busbar gasket from the bolt diameter alone. The real design boundary is the complete fastener stack: bolt, washer, busbar contact patch, mica edge, adhesive, tolerance, voltage, and surrounding HV wiring.

A small change around one bolt hole can affect both electrical insulation and joint resistance, so the safest approach is to validate the die-cut mica together with the real busbar assembly before production tooling is frozen.
