Why Is UL94 V-0 Rated Insulation Ceramic Foam Becoming the New Standard for EV Battery Safety?

Why Is UL94 V-0 Rated Insulation Ceramic Foam Becoming the New Standard for EV Battery Safety?

The Hidden Danger in Modern Battery Enclosures

What happens to an electric vehicle when its internal thermal management system fails to suppress a localized cell fire? Without ultra-high-grade fire barriers, a single localized thermal runaway event will instantly breach lower-grade materials, propagating extreme heat across adjacent modules and triggering a catastrophic vehicle fire.

The Ultimate Defense Against Thermal Runaway

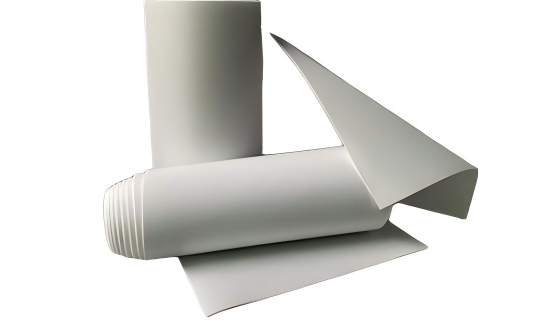

By implementing an insulation ceramic foam ul94 v-0 barrier, engineers can completely isolate thermal events at the source. This advanced material utilizes an inorganic, non-metallic crystalline matrix that provides near-zero thermal conductivity. It ensures that any open flame or thermal blast is securely contained, extinguishing itself within 10 seconds without producing dangerous flaming drips or dense, toxic smoke.

Why Should Engineers Avoid Conventional Polyurethane and Standard Elastomeric Foams?

The Cost of Choosing the Wrong Insulation Material

If your engineering team chooses cheaper, traditional organic foams to save on upfront production budgets, you are placing a ticking time bomb inside the high-voltage pack. Under severe thermal abuse or collision-induced short circuits, these organic materials break down rapidly, melting into liquid fuel that actually accelerates flame propagation.

Moving From Combustible Plastics to Inorganic Barriers

To resolve this critical safety risk, switching to a premium inorganic ceramic foam with a certified UL94 V-0 rating is paramount. This structural framework serves as an unyielding physical firewall between cells, guaranteeing structural integrity under intense heat and providing passenger cabins with vital escape time.

The table below outlines how flammability classifications directly affect materials used in high-temperature automotive application zones:

How Do Design Flaws Cause Ceramic Insulation Foam to Fail Prematurely?

The Consequences of Over-Compression and Poor Clearance

Many production teams compress insulation foam past its mechanical threshold to optimize volumetric energy density, or they route fragile wiring systems right up against abrasive material edges. Over-compressing destroys the cell structure needed to trap air, causing thermal conductivity to spike, while tight packaging rubs against wire insulation and triggers systemic electrical failures.

Implementing Standardized Physical Application Protocols

To implement this specialized insulation successfully, development teams must strictly adhere to three standardized application protocols:

• Optimize the Compression Deflection: Maintain the physical working compression ratio between 30% and 50% to balance structural cushioning with maximum thermal resistance.

• Deploy High-Temperature Adhesives: Utilize single- or double-sided flame-retardant pressure-sensitive adhesives (PSAs) to bond the foam sheets flush against aluminum battery top enclosures.

• Maintain Strict Cable Clearance: Ensure a minimum spatial clearance of 5 mm between the ceramic foam borders and routing pathways for high-voltage cables to prevent mechanical abrasion.

Leveraging 15 Years of True Tier-1 Component Expertise

Working for fifteen years managing international tier-1 component integration at fuqiang, I have audited dozens of post-test experimental battery modules. I have seen firsthand how material selection dictates the survival of a vehicle's electrical nervous system.

Over my fifteen-year career optimizing component layouts for global OEMs, I have learned that thermal safety and harness integrity are deeply interconnected. Specifying premium, certified V-0 ceramic foam is not merely an optional upgrade—it is the final, non-negotiable physical firewall that protects both the vehicle's electrical architecture and the lives of its passengers.

People Also Ask (FAQ)

Is UL94 V-0 the highest flammability rating available for automotive insulation?

While UL94 V-0 is the highest standard classification for vertical burn tests on thin materials, specialized protocols like UL94 5VA/5VB exist for thicker industrial plastic plaques. However, for flexible lightweight insulation foams inside automotive battery packs, a V-0 rating represents the global gold standard for safety and cost-efficiency.

What makes ceramic foam superior to traditional silicone or polyurethane foams?

Traditional polyurethane (PU) and silicone foams rely on organic chemistry; even when treated with flame-retardant additives, they degrade, melt, or emit heavy smoke under prolonged exposure to temperatures above 300°C. Ceramic foam is engineered from stable, inorganic non-metallic matrices that regularly withstand continuous temperatures exceeding 1000°C without melting, dripping, or offgassing toxic fumes.

Where else is insulation ceramic foam used inside electric vehicles?

Beyond battery cell interlayers and top cover liners, this specialized material is extensively deployed to insulate On-Board Chargers (OBC), high-power inverters, DC-to-DC converters, and as a protective, fireproof wrap around high-voltage wire harness pass-throughs in the vehicle firewall.
