How Does a Custom Silica Nano Thermal Insulation Panel Protect an EV Battery Pack?
Without an effective thermal barrier, heat from one damaged battery cell can spread toward adjacent cells, wiring harnesses, busbars, sensors, and the battery enclosure, increasing the risk of thermal propagation and pack-level failure.

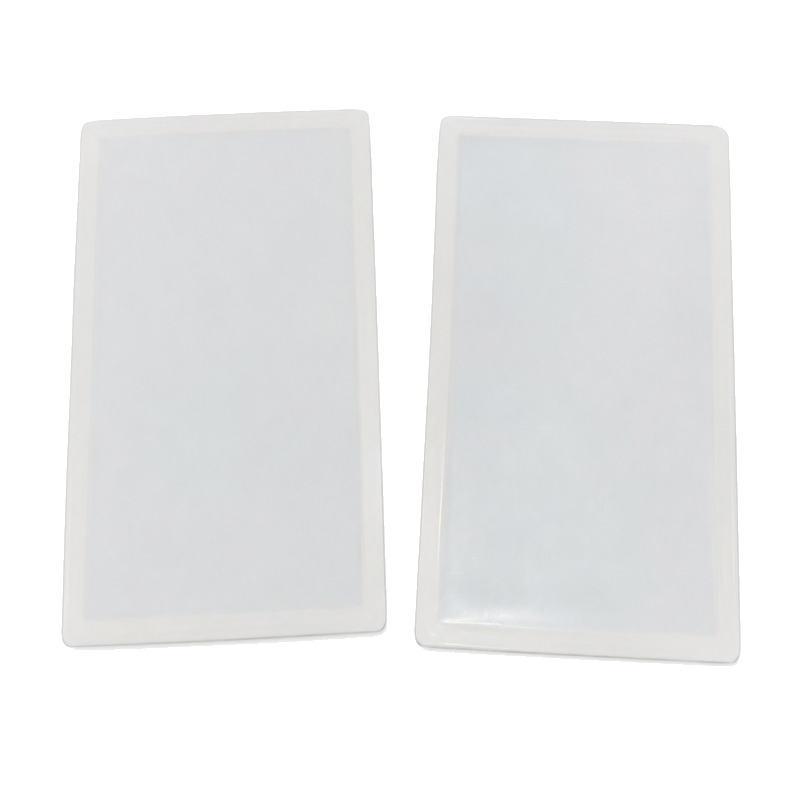

The practical solution is to install a custom silica nano thermal insulation panel in critical cell-to-cell, module-to-module, and pack-protection areas. Its nano-porous silica structure restricts heat transfer while maintaining a thin and lightweight construction suitable for space-limited EV battery packs.
Why Does an EV Battery Pack Need a Silica Nano Thermal Barrier?
A conventional foam or plastic sheet may shrink, melt, or lose insulation performance when exposed to intense cell heat, allowing thermal energy to reach nearby cells and high-voltage components.
A silica nano thermal insulation panel slows conductive heat transfer and creates additional time for battery monitoring, venting, and protection systems to respond. Aerogel-based barriers can combine thermal resistance with low thickness and low weight, making them suitable for compact pouch and prismatic battery modules.[1]
The panel should be treated as one layer of a complete thermal runaway strategy, not as a standalone fire guarantee. Pack safety must also include cell selection, sensors, vent paths, structural barriers, cooling control, fuses, and battery-management protection.
How Should a Custom Silica Nano Panel Be Designed?
An incorrectly sized panel can compress battery cells unevenly, block venting paths, interfere with busbars, or pinch the high-voltage wiring harness.
The correct solution is to customize the panel according to cell chemistry, gap size, compression force, heat-flux target, dielectric requirement, and battery-pack geometry. Aspen Aerogels notes that engineered cell barriers can be optimized for thermal conductivity, thickness, and compression response.[1]
Design Item
Customization Requirement
Risk if Incorrect
Panel thickness
Match the available gap and thermal target
Poor insulation or assembly interference
Compression response
Control cell swelling and contact pressure
Cell deformation or barrier fatigue
Surface facing
Select for dust, abrasion, and dielectric protection
Particle contamination or electrical leakage
Cutouts and edges
Preserve vents, sensors, busbars, and service access
Blocked gas release or installation damage
Harness clearance
Protect cable bend radius and connector strain relief
Abrasion, insulation damage, or HV isolation fault
The complete panel may use silica aerogel, microporous silica, reinforced fibers, protective films, coatings, or pressure-sensitive adhesive. The exact construction must be validated because the facing and adhesive may fail before the silica insulation core.
Which Tests Should Confirm Heat and Fire Protection?
A laboratory thermal-conductivity value alone cannot prove that the panel will survive cell venting, flame, hot particles, vibration, humidity, and long-term compression inside a real battery pack.
The correct solution is to test the finished panel at material, cell, module, and pack levels. UL Solutions evaluates thermal propagation through crush, heating, nail penetration, overcharge, short circuit, and flame exposure, including the effectiveness of insulating barriers at module and pack level.[2]
Recommended validation includes thermal resistance under compression, flame exposure, dielectric strength, vibration, mechanical shock, humidity, dimensional stability, particle release, and adhesive aging. Applicable programs may include UL 2580, SAE J2464, ISO 6469-1, and UN Regulation No. 100, depending on the vehicle and target market.[2][3][4]
Need a Custom EV Battery Thermal Insulation Panel Sample?
Send your cell type, available gap, panel thickness, compression range, maximum temperature, dielectric requirement, drawing, and annual demand for a prototype evaluation.
FAQ
What is a silica nano thermal insulation panel?
It is a thin insulation component using nano-porous silica or silica aerogel to reduce heat transfer inside a battery module or pack.
Can a silica nano panel stop thermal runaway?
It can slow heat propagation, but it cannot guarantee complete protection without validated venting, cooling, sensing, and pack-level fire barriers.
Where is the panel installed in an EV battery pack?
Common locations include between cells, between modules, beneath the pack cover, and around protected high-temperature zones.
Can the panel protect high-voltage wiring harnesses?
Yes. A properly positioned panel can reduce radiant and conductive heat exposure, but it must not compress cables or block connector access.
15-Year Automotive Wire Harness and Battery-Pack Review
Based on 15 years of automotive wire harness experience, I recommend reviewing the thermal panel together with the cells, busbars, sensors, connectors, and high-voltage cable routing. The best insulation panel is not simply the thickest one; it is the customized barrier that controls heat without creating compression, venting, or wiring-harness risks.
