Aerogel vs Mica: Which Is Better for EV Battery Thermal Protection?

Choosing the wrong thermal barrier can allow heat from one failing lithium-ion cell to reach adjacent cells faster, increasing the risk of cell-to-cell thermal runaway propagation.

Aerogel is generally better when the design priority is maximum thermal insulation in a thin, lightweight layer, while mica is stronger when electrical insulation, structural stability, and high-temperature barrier performance are the priorities. In many EV battery packs, the best solution is not choosing one material universally, but using each where its properties solve a specific thermal and electrical risk.

What Is the Main Difference Between Aerogel and Mica?

Treating aerogel and mica as interchangeable insulation materials can result in unnecessary thickness, weight, cost, or inadequate protection at critical locations inside the battery pack.

Select aerogel primarily for thermal insulation and mica primarily for robust thermal-electrical barrier applications. Aerogel's highly porous structure suppresses heat transfer extremely effectively, while mica provides excellent dielectric properties and remains dimensionally stable under severe temperatures.

The distinction becomes especially important during thermal runaway. UL Solutions notes that EV battery thermal events can involve extremely high temperatures, flames, pressure, and ejected particles, meaning material selection must consider more than a single thermal-conductivity value.^[1]

Is Aerogel Better for Cell-to-Cell Thermal Runaway Protection?

Without sufficient insulation between closely packed cells, heat released by one failing cell can rapidly transfer into neighboring cells and contribute to propagation through the module.

Aerogel-based barriers are particularly attractive where engineers need strong thermal resistance with minimal thickness and weight. Their porous structure restricts solid and gaseous heat conduction, allowing relatively thin barriers to slow heat transfer between neighboring surfaces.

This makes aerogel especially relevant to cell-to-cell barriers in high-energy-density modules, where every millimeter of packaging space matters.

When Is Mica Better Than Aerogel?

Thermal insulation alone may not be sufficient around busbars, high-voltage connections, module covers, and other locations where electrical isolation and mechanical stability are equally important.

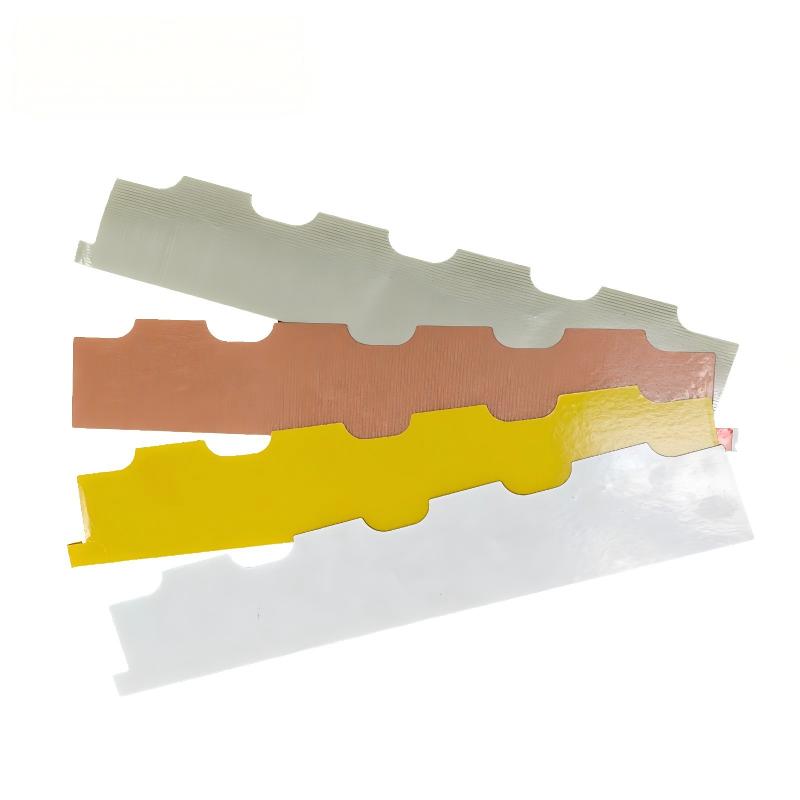

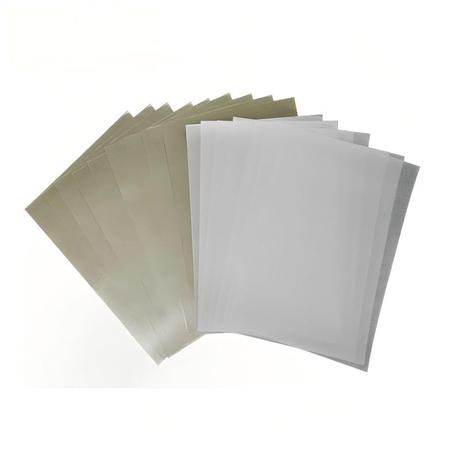

Mica is often the stronger choice when the component must provide both a high-temperature barrier and dependable dielectric isolation. It can be processed into sheets and custom die-cut parts for module, busbar, enclosure, and high-voltage insulation structures.

This makes mica particularly useful near HV busbars, connectors, electrical interfaces, module boundaries, and pack-level protection areas.

Aerogel vs Mica: Which Material Performs Better?

Selecting materials from a single specification such as maximum temperature can hide important differences in thermal conductivity, compression behavior, dielectric performance, thickness, and mechanical durability.

Compare the materials according to their actual function inside the battery pack rather than searching for one universal winner. A cell separator has very different requirements from an HV busbar barrier or enclosure insulation component.

Can Aerogel and Mica Be Used Together?

Forcing one insulation material to perform every thermal, electrical, and mechanical function can create an inefficient battery pack and increase material cost without improving safety.

A hybrid insulation architecture can use aerogel near cells and mica around electrically or mechanically demanding areas. This allows engineers to use aerogel where thermal resistance per unit thickness matters most and mica where dielectric and structural barrier performance becomes critical.

For example, a battery module may use an aerogel composite between cells while using die-cut mica components around busbars, high-voltage connections, module covers, or enclosure interfaces.

How Should Engineers Choose Between Aerogel and Mica?

Choosing a thermal barrier before understanding the cell chemistry, propagation behavior, available gap, compression load, voltage, and surrounding components can lead to expensive redesign after module testing.

Define the failure scenario first, then select the material and thickness around the required thermal, electrical, and mechanical performance. Prototype parts should ultimately be validated at the relevant cell, module, and pack levels.

UL Solutions performs EV battery thermal propagation testing from cell through pack level and evaluates the effectiveness of anti-propagation barriers and insulating materials.^[2] SAE J2464 also addresses abuse testing of electric and hybrid vehicle batteries under conditions beyond their normal operating range.^[3]

Need Custom Aerogel or Mica Parts for an EV Battery Project?

Fuqiang can support custom battery insulation components according to your cell, module, pack, busbar, connector, and high-voltage wiring layout. Send us your drawing, required thickness, operating temperature, voltage, and installation location for material selection or sample evaluation.

FAQ

Is aerogel better than mica for EV batteries?

Not universally. Aerogel is generally stronger for high-efficiency thermal insulation, while mica is particularly valuable when electrical insulation and structural thermal-barrier performance are also required.

Where is aerogel used in an EV battery pack?

Aerogel composites are commonly considered for tight thermal-barrier locations such as between battery cells or around modules where limiting heat transfer is critical.

Where is mica used in EV batteries?

Mica components can be used around modules, busbars, high-voltage connections, battery covers, and enclosure interfaces requiring thermal and electrical isolation.

Can mica stop battery thermal runaway?

Mica does not stop the electrochemical thermal runaway occurring inside a failing cell. It can form part of a barrier system designed to delay heat and flame propagation to surrounding components.

Can aerogel completely prevent thermal runaway propagation?

No material should be assumed to completely prevent propagation without system-level validation. Barrier performance depends on material construction, thickness, cell chemistry, spacing, compression, heat flux, venting, and pack architecture.

15-Year Automotive Wire Harness Perspective

After 15 years working with automotive wire harnesses and EV electrical systems, I see battery insulation as part of the complete high-voltage architecture—not an isolated material decision. Aerogel can control heat transfer around cells, while mica can provide robust thermal and electrical separation around busbars, HV connectors, and wiring interfaces.

The best material is therefore not simply aerogel or mica. It is the material, thickness, geometry, and location that correctly match the battery's real failure mode.
