How Are Mica Sheets Used at the Cell, Module, and Pack Levels in EV Batteries?

If thermal runaway heat is allowed to move freely from one cell to the next, a local battery failure can escalate into module-level propagation and eventually threaten the complete battery pack.

The most effective use of mica is therefore different at each level: thin barriers between cells, larger thermal and electrical barriers around modules, and fire-resistant insulation at pack lids, walls, busbars, and other critical interfaces. Mica is not an active cooling material; its main role is to delay heat transfer, maintain dielectric separation, and protect surrounding structures during abnormal high-temperature events.

How Is Mica Used at the Cell Level?

When two cells are tightly packed together, direct surface-to-surface heat transfer can allow a failing cell to rapidly heat its neighbor and increase the risk of cell-to-cell thermal propagation.

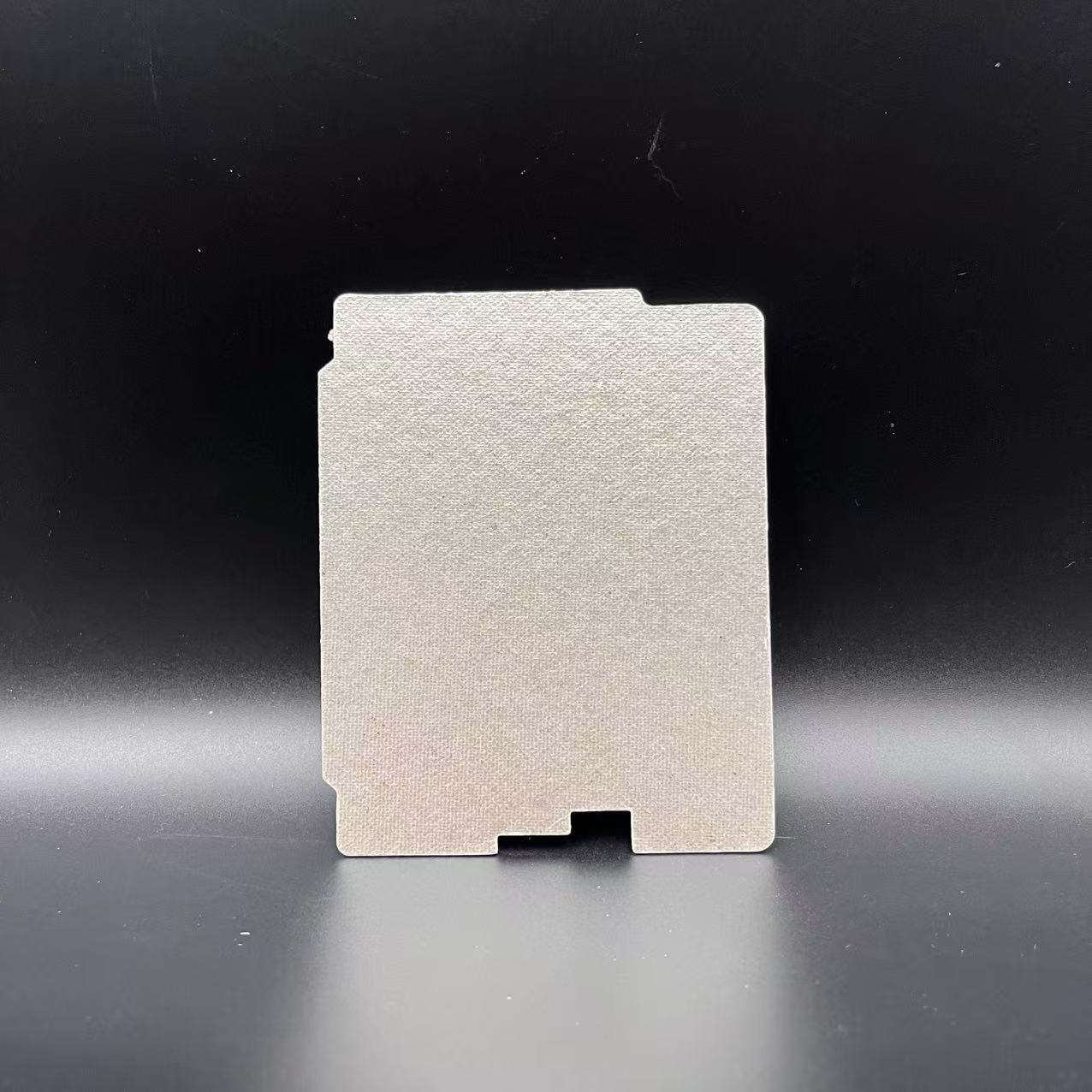

The solution is to install thin mica sheets, mica laminates, or engineered mica-based barriers between adjacent cells where the battery architecture requires thermal and dielectric separation. The barrier creates additional thermal resistance while maintaining electrical insulation between conductive cell surfaces and surrounding structures.

Rigid mica and mica laminates are used as barriers between battery cells because they retain electrical insulating capability at elevated temperatures and can help slow heat transfer during a thermal event.^[1]

Cell-level mica is particularly practical with prismatic and pouch-cell layouts where large flat surfaces face each other. Cylindrical-cell architectures may instead use shaped barriers, sleeves, rings, spacers, or other thermal-propagation materials depending on cell spacing and venting direction.

Mica should not block the designed cell vent path. A barrier that slows lateral heat propagation but redirects hot gas toward another critical component can create a different failure mode.

How Is Mica Used at the Module Level?

Even when individual cells have thermal barriers, a severe event can still expose the module frame, busbars, end plates, neighboring cell groups, and electrical components to extreme heat.

The solution is to use larger mica components as module-side barriers, end-plate insulation, busbar insulation, top protection, and thermal separation between cell groups. At this level, mica is no longer protecting only one cell interface; it becomes part of the module's thermal-propagation and electrical-insulation architecture.

Mica components are commonly used for electrical insulation between cells, modules, and conductive parts, as well as for thermal barriers and fire-resistant protection inside EV battery systems.^[2]

Module-level material selection should also consider compression. Some battery architectures need controlled pressure on pouch or prismatic cells, meaning a rigid mica sheet may be combined with a more compliant pad rather than expected to provide both fire protection and compression management by itself.

How Is Mica Used at the Pack Level?

If a thermal event escapes the module, hot gas, flame, particles, and radiant heat can attack the battery lid, enclosure wall, high-voltage busbars, wiring, connectors, or nearby vehicle structures.

The solution is to use larger mica sheets and shaped components around critical pack boundaries, including the underside of the pack lid, perimeter walls, module-to-module interfaces, busbar regions, and high-voltage electrical components. Pack-level mica provides a final thermal and dielectric barrier between the battery's internal failure zone and the enclosure or vehicle.

Industry applications include cell and module barriers, insulation around the inside perimeter of the battery pack, pack-lid protection, and flexible mica insulation around components such as busbars and wiring.^[3]

The pack level generally requires larger surface coverage than cell-level barriers, so weight, thickness, fastening, vibration resistance, cut-outs, vent openings, and assembly tolerances become more important.

Adding the thickest mica sheet everywhere is not automatically the safest design. Thermal barriers must work with gas venting, pressure relief, cooling plates, electrical clearances, serviceability, and overall pack mass.

What Is the Difference Between Cell-, Module-, and Pack-Level Mica?

Using the same mica thickness and geometry at every battery level can add unnecessary mass while still leaving the most important thermal paths insufficiently protected.

The correct solution is to select mica according to the failure mode at each location rather than treating it as one universal battery insulation sheet. Cell barriers prioritize local propagation control, module barriers protect larger electrical and structural zones, and pack barriers protect the enclosure and vehicle interface.

A simplified design logic is:

Cell Level: Stop heat moving directly into the neighboring cell.
Module Level: Prevent one cell group from compromising the complete module.
Pack Level: Prevent module-level heat and flame from attacking the enclosure and surrounding vehicle.

How Should Mica Thickness Be Selected?

A mica sheet that is too thin may not provide enough thermal delay, while an unnecessarily thick sheet increases pack weight, cost, stack height, and assembly difficulty.

The solution is to determine thickness through thermal-propagation testing, dielectric requirements, mechanical constraints, exposure time, and the location of the barrier. There is no single mica thickness that is correct for every EV battery.

The required construction depends on cell chemistry, cell format, stored energy, spacing, expected heat flux, vent-gas direction, allowable temperature on the protected side, mica grade, binder system, and whether the material is used alone or as part of a multilayer barrier.

For this reason, material selection should be based on representative battery testing rather than simply specifying “1 mm mica” or “2 mm mica” from a generic catalogue.

Should Mica Replace Aerogel or Silicone Foam?

Treating mica, aerogel, and silicone foam as interchangeable materials can create poor thermal performance because each material solves a different combination of insulation, compression, sealing, and fire-protection problems.

The better solution is often a multilayer design in which mica provides high-temperature dielectric and flame protection while another material provides low thermal conductivity, compliance, cushioning, or sealing. Material combinations should be selected around the actual battery architecture and abuse-test result.

Mica is particularly useful where structural thermal barriers and electrical insulation are required. Aerogel-based materials can offer very low thermal conductivity, while silicone foams can provide compression recovery and gap accommodation.

One material should not be expected to perform every battery-pack function.

What Should Be Checked Before Designing a Mica Battery Part?

Ordering a flat mica sheet before confirming the battery geometry can result in blocked vents, poor assembly clearance, cracked material, uncovered thermal paths, or interference with busbars and cooling structures.

The correct solution is to design the mica component from the actual Cell, Module, or Pack CAD and the thermal-runaway scenario. Thickness, cut-outs, holes, edge distances, bending requirements, adhesive, mounting method, dielectric requirements, and allowable dimensional tolerances should be defined before prototype cutting.

Engineering Information to Provide:

Send the cell format, mica location, CAD drawing, required thickness range, maximum dimensions, dielectric target, thermal-barrier target, adhesive requirement, compression requirement, operating temperature, and applicable battery abuse-test specification.

How Should Mica Thermal Barriers Be Validated?

A mica sheet can survive a laboratory flame test but still fail inside a battery if hot particles bypass the barrier, joints open during vibration, or heat transfers through uncovered edges and fasteners.

The solution is to validate both the material and the assembled battery architecture under representative thermal-runaway, electrical, mechanical, and environmental conditions. Material flammability alone does not demonstrate that a Cell, Module, or Pack design can control thermal propagation.

UL Solutions performs EV battery abuse, fire, and thermal-propagation testing and lists standards including UL 2580, GB 38031, SAE J2464, SAE J2929, UN 38.3, and UNECE R100 among commonly used battery test frameworks.^[4]

ISO 6469-1 specifies safety requirements for rechargeable energy storage systems used in electrically propelled road vehicles, while UNECE work on Regulation No. 100 specifically addresses thermal propagation and occupant protection from hazardous battery events.^[5][6]

Need a Custom Mica Sheet for an EV Battery?

For a prototype review, prepare the Cell, Module, or Pack CAD, mica installation location, thickness target, dielectric requirement, thermal-runaway target, maximum dimensions, cut-outs, adhesive construction, sample quantity, and annual demand.

Defining the exact installation level first makes it much easier to select the correct mica grade, thickness, geometry, and manufacturing process.

FAQ

What Is Mica Used for in an EV Battery?

Mica is mainly used for high-temperature electrical insulation, thermal barriers, fire protection, and thermal-runaway propagation control around cells, modules, busbars, and battery-pack structures.

Can Mica Be Placed Between Battery Cells?

Yes. Thin mica sheets or engineered mica barriers can be installed between adjacent cells where the battery design requires additional dielectric isolation and thermal-propagation resistance.

Where Is Mica Used in a Battery Module?

Typical locations include cell-group boundaries, module sidewalls, end plates, busbars, top protection, and electrically conductive structures requiring dielectric isolation.

Where Is Mica Used in a Battery Pack?

Mica can be used under the pack lid, along enclosure walls, between modules, around busbars and high-voltage components, and at other locations requiring thermal or electrical barriers.

Does Mica Stop Thermal Runaway?

No material can guarantee that thermal runaway will not occur. Mica is used as a passive barrier to slow heat transfer, maintain insulation, and help reduce or delay propagation to neighboring components.

Is Thicker Mica Always Better for EV Batteries?

No. Greater thickness can improve barrier capability in some designs but also increases weight, packaging space, cost, and assembly difficulty. Thickness must be validated for the specific battery architecture.

Should Mica Be Tested at Cell, Module, or Pack Level?

The final validation level should reflect how the material is used. Cell-level screening is useful, but module- and pack-level tests may still be required because propagation paths, vent gases, enclosure geometry, and neighboring components change system behavior.

15-Year Automotive Battery Component Perspective

Based on 15 years of automotive component and wire-harness manufacturing experience, I do not select mica by temperature rating or thickness alone. The first question is always where the part sits: Cell, Module, or Pack.

A cell barrier must control local heat transfer without disturbing venting; a module barrier must protect electrical and structural interfaces; and a pack barrier must protect the enclosure and surrounding vehicle. The reliable design comes from matching mica grade, thickness, shape, fixing method, and validation test to that exact failure path.
