Why Use Mica Electrical Insulation in EV Battery Packs?

Mica electrical insulation is used in electric vehicle battery packs because mica-based materials combine electrical insulating properties with resistance to elevated temperatures. Properly selected mica sheets can provide dielectric separation between conductive components while also contributing to thermal and mechanical protection.

However, mica is not automatically suitable for every battery location. Engineers must consider the complete material construction, insulation thickness, operating voltage, compression, temperature exposure, and installation geometry before approving a design.

Common EV battery insulation locations and mica selection considerations

Where Should Mica Electrical Insulation Be Placed Inside a Battery Pack?

Incorrect insulation placement can leave exposed conductive interfaces vulnerable to electrical faults, especially where busbars, brackets, and enclosure structures are positioned close together.

Place mica insulation according to the electrical separation requirements and mechanical interfaces identified in the battery design.

Potential locations include busbar supports, module partitions, selected enclosure interfaces, and cell barriers where the system design calls for mica-based protection. Engineers should check edge coverage, creepage and clearance requirements, local pressure, and the possibility of movement during vibration. ISO 6469-1 addresses safety requirements for rechargeable energy storage systems, but it does not establish a universal mica sheet thickness for every application [1].

How Should Mica Insulation Thickness and Dielectric Strength Be Verified?

An underspecified insulating layer may fail under electrical stress, while unnecessary thickness can interfere with battery packaging and assembly tolerances.

Select thickness using the required electrical withstand performance and verify it with representative material and assembly testing.

IEC 60243-1 describes methods for testing the short-time electric strength of solid insulating materials at power frequencies [2]. However, an AC material breakdown result is not automatically equivalent to DC insulation performance in an EV battery pack. Test conditions, electrodes, temperature, humidity, material defects, and component geometry all influence the result.

For a material-selection review, provide the battery voltage range, insulation drawing, available space, and required electrical test conditions. These details allow a more useful discussion of possible sheet constructions and validation requirements.

Which Mica Material Properties Matter Beyond Dielectric Strength?

A mica sheet with suitable laboratory dielectric properties can still crack, delaminate, or become displaced during production or vehicle operation.

Evaluate the finished mica composite rather than selecting a material from its mineral content alone.

Commercial mica insulation may contain reconstituted mica, resin binders, and reinforcing layers. Their composition affects stiffness, forming behavior, and thermal response. IEC 60371-1 defines terminology for built-up mica materials, while IEC 60371-2 covers relevant test methods [3][4]. Actual samples should also be assessed for cutting quality, fastening conditions, dimensional stability, and insulation integrity after assembly.

How Can Engineers Avoid Insulation Failures During Battery Assembly?

Poorly controlled cutting edges, excessive bending, or local clamping pressure can damage insulation before the battery enters service.

Validate the complete installation process using production-representative parts and assembly conditions.

Check punched holes, slots, corners, surface contamination, and the interaction between mica and adjacent metal components. Where adhesive-backed mica is proposed, verify adhesion and aging behavior under relevant conditions. Inspection criteria should distinguish cosmetic features from defects that can reduce electrical isolation or mechanical retention.

FAQ

Is mica a good electrical insulator for EV batteries?

Mica is a useful insulating mineral, but the suitability of a commercial mica sheet depends on its binder, reinforcement, thickness, processing, and operating conditions.

Can mica insulation prevent battery thermal runaway?

Mica-based barriers may help resist heat or flame exposure, but they cannot be assumed to prevent thermal runaway. Pack-level safety depends on cell behavior, barrier design, cooling, venting, and validation.

What thickness of mica sheet is required for an 800 V battery pack?

There is no universal thickness based only on the nominal battery voltage. The design must account for maximum operating voltage, applicable electrical safety requirements, mechanical tolerances, and representative withstand testing.

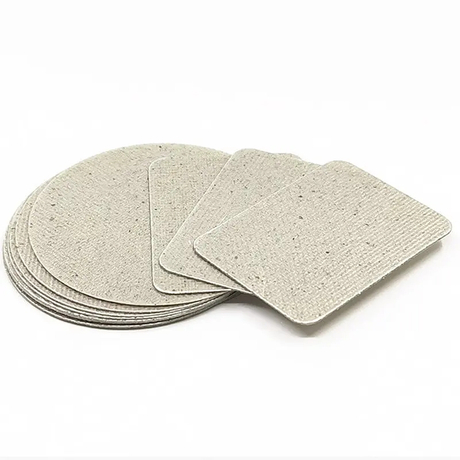

Can mica sheets be die-cut for battery busbar insulation?

Many mica composites can be converted into shaped components, depending on their construction and thickness. Hole quality, edge cracking, and dimensional tolerance should be verified on the selected grade.

Does a high dielectric strength value guarantee insulation reliability?

No. Material breakdown strength is only one input; mechanical damage, surface contamination, thermal aging, and the assembled electrical geometry also matter.

Conclusion

Mica electrical insulation should be selected as part of the complete EV battery insulation system, not as an isolated sheet material. Suitable material construction, placement, thickness, and representative validation must all be considered to reduce the risk of electrical failure.

For a technical evaluation or quotation discussion, prepare your insulation drawing, proposed material construction, voltage requirements, dimensions, and expected operating environment. Request a review of material suitability, processing considerations, and the testing evidence needed for approval.

References

1. ISO, ISO 6469-1:2019 — Electrically propelled road vehicles: Rechargeable energy storage system safety.

2. IEC, IEC 60243-1:2013 — Electric strength of insulating materials: Tests at power frequencies.

3. IEC, IEC 60371-1:2003 — Specification for insulating materials based on mica: Definitions and general requirements.

4. IEC, IEC 60371-2:2004 — Specification for insulating materials based on mica: Methods of test.
