Why Do PET-Laminated Mica Pads Reduce Particle Shedding During Automated EV Battery Pack Assembly?

Unprotected mica edges and surfaces can release fine particles during die cutting, robotic pick-and-place, conveyor handling, adhesive application, and battery pack assembly, creating contamination that can interfere with bonding and automated production.

Laminating a suitable PET film to the mica surface creates a tougher outer skin that helps contain loose mica particles and improves handling during automated assembly. The PET layer can improve surface integrity, dimensional handling, and adhesive compatibility, while the mica core continues to provide the primary high-temperature electrical insulation function.

The important engineering point is that PET lamination reduces particle shedding; it does not automatically eliminate every source of mica dust. Die-cut edges, holes, slots, exposed mica, adhesive interfaces, and the lamination process itself still need to be controlled.

Why Does Mica Shed Particles During EV Battery Assembly?

Repeated contact with grippers, guides, rollers, locating pins, cutting tools, and operators can loosen particles from exposed mica surfaces or cut edges, increasing contamination inside the battery manufacturing line.

The first solution is to identify where the mica is mechanically disturbed and protect those surfaces or edges before high-volume assembly. Mica-based insulation is valuable because of its electrical and thermal properties, but mica-containing insulation structures can present shedding challenges during battery manufacturing.^[1]

Particle shedding becomes especially important when a battery line uses vision inspection, robotic pick-and-place, pressure-sensitive adhesive, automated tape application, vacuum tooling, or tightly controlled clean assembly areas.

Published battery-insulation development work specifically identifies particle shedding as undesirable because dust can create manufacturing problems and interfere with adhesive attachment to insulation surfaces.^[1]

How Does PET Lamination Reduce Mica Dust and Particle Shedding?

If robotic tooling repeatedly contacts a friable mica surface directly, every handling cycle can become another opportunity for surface damage and particle release.

PET film provides a continuous polymer-facing layer between the mica and much of the assembly equipment. Instead of grippers, rollers, guides, or adhesive liners rubbing directly against the mica surface, they interact with the laminated film.

This can improve several manufacturing characteristics at the same time: surface cohesion, handling strength, dimensional stability, friction consistency, cleanliness, and compatibility with downstream adhesive processes.

The concept is similar to other battery insulation laminate strategies in which outer layers contain particle-producing inner materials. Patent literature on battery flame barriers describes sealed laminate structures specifically intended to prevent inorganic material from flaking during battery block or pack assembly.^[2]

Why Are Die-Cut Edges Still Critical on PET-Laminated Mica Pads?

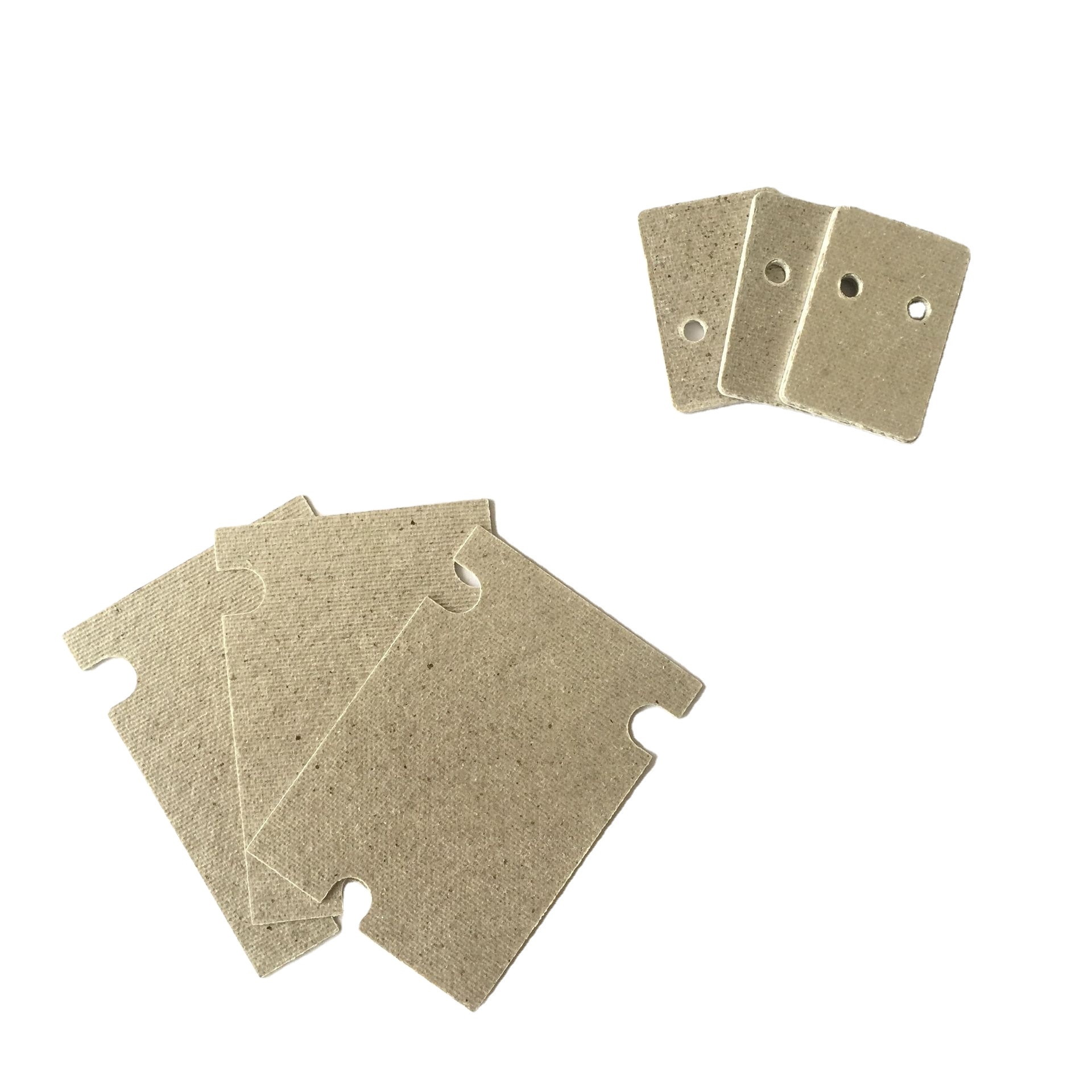

A PET film on the top and bottom surfaces does not guarantee a particle-free component if die cutting exposes the mica core around the outer perimeter, bolt holes, slots, vents, or locating features.

Control edge quality through laminate construction, tooling condition, cutting direction, minimum feature size, edge geometry, and—where required—an edge-containment strategy. The highest particle risk can move from the broad surface to the newly exposed perimeter after die cutting.

This matters for complex EV battery insulation parts containing busbar bolt holes, HV terminal openings, vent cutouts, locating holes, narrow bridges, and irregular pack geometries. A worn die or poorly supported laminate can create fractured edges even when the PET-facing surfaces look clean.

Research on battery insulation laminates also emphasizes peripheral sealing: enclosing particle-producing material at the edge can reduce flaking during handling and improve subsequent attachment processes.^[2]

Does PET Lamination Improve Adhesive Bonding and Automated Pick-and-Place?

Loose dust between a mica pad and pressure-sensitive adhesive can reduce effective contact area, causing lifting, positional movement, or failed placement during automated assembly.

A controlled PET surface can provide a more consistent interface for PSA, robotic gripping, vacuum pickup, and vision-based handling. However, the PET grade, surface treatment, adhesive chemistry, peel strength, aging behavior, and operating temperature must be validated as a complete laminate system.

Adhesive bonding is already an important part of EV battery manufacturing because cells and insulation components must remain positioned during manufacturing and vehicle vibration.^[3]

For high-speed automation, engineers should evaluate more than initial adhesion. Peel strength after thermal aging, shear resistance, liner release force, flatness, vacuum pickup consistency, static charge, and contamination levels can all influence cycle stability.

Does PET Lamination Change the Thermal Performance of Mica?

Treating PET-laminated mica as if every layer has the same high-temperature capability can produce a dangerous material-selection error during a battery thermal event.

Evaluate the composite layer by layer. Mica provides excellent thermal stability and electrical insulation, while the PET film and lamination adhesive have their own temperature limits and failure behavior.

Mica is used in EV battery protection because of its thermal stability, chemical resistance, and electrical insulation characteristics.^[4] But adding PET means the finished laminate should be validated for the actual application rather than assuming the mica core's properties automatically apply to the entire composite.

For areas exposed to severe thermal runaway, the engineering question is therefore not simply “Can mica survive the temperature?” It is whether the complete PET/mica/adhesive structure maintains the required insulation and barrier function for the required duration.

How Should PET-Laminated Mica Pads Be Specified for Automated EV Battery Assembly?

Buying a part only by “mica thickness + PET film” can lead to production variation in dust level, flatness, die-cut dimensions, adhesive bonding, and robotic handling.

The drawing and material specification should define both electrical performance and manufacturing behavior. For automated battery lines, consider total thickness, mica grade, PET thickness, lamination adhesive, exposed-edge condition, die-cut tolerance, flatness, cleanliness, surface energy, peel requirements, and packaging orientation.

For procurement and engineering reviews, a useful specification can include:

• Total laminate thickness and tolerance

• Mica core type and thickness

• PET film thickness and one-side/two-side lamination

• Die-cut hole and edge tolerance

• Maximum burr, delamination, or edge fracture criteria

• Particle cleanliness requirement

• PSA type and adhesive keep-out zones

• Thermal and dielectric validation requirements

• Part flatness and robotic pickup requirements

• Tray, liner, or clean packaging requirements

Need a Die-Cut PET-Laminated Mica Pad for an EV Battery Pack?

Send Fuqiang your 2D/3D drawing, mica thickness, PET requirement, adhesive specification, hole geometry, cleanliness target, assembly method, operating temperature, system voltage, and annual volume.

For automated assembly projects, requesting samples before production tooling is especially useful because particle shedding, vacuum pickup, die-cut edge quality, flatness, and PSA bonding can be evaluated directly on the customer's assembly process.

FAQ

What Is PET-Laminated Mica?

PET-laminated mica is a composite insulation material in which PET film is bonded to one or both surfaces of a mica-based sheet to modify its surface and handling characteristics.

Why Does Mica Sheet Produce Dust?

Mica-based sheets can release particles when their surfaces or edges are mechanically disturbed during cutting, abrasion, handling, or assembly. The amount depends strongly on material construction and processing.

Does PET Film Completely Stop Mica Particle Shedding?

No. PET can reduce shedding from laminated surfaces, but exposed die-cut edges and holes may still release particles. Edge quality and laminate construction remain important.

Is PET-Laminated Mica Better for Automated Battery Assembly?

It can be. A tougher, more consistent surface may improve robotic handling, vacuum pickup, adhesive application, and cleanliness, but the laminate should be validated on the actual production equipment.

Can PET-Laminated Mica Be Die Cut?

Yes. PET/mica laminates can be converted into custom shapes, but tool condition, hole geometry, narrow features, cutting parameters, and exposed-edge quality must be controlled.

Is PET-Laminated Mica Suitable for 800V EV Battery Packs?

Potentially, but voltage alone is not enough to approve the material. Dielectric strength, creepage and clearance geometry, thickness, temperature, thermal-runaway exposure, adhesive system, and OEM validation requirements must all be reviewed.

Where Are PET-Laminated Mica Pads Used in EV Batteries?

Depending on the battery architecture, they can be used around modules, busbars, high-voltage components, pack covers, electrical interfaces, and other locations requiring electrical or thermal insulation.

15-Year Automotive Wire Harness and EV Insulation Perspective

After 15 years working with automotive wire harnesses and EV insulation components, I have learned that a material can pass its electrical specification and still create problems on the assembly line. For die-cut mica parts, cleanliness, edge integrity, flatness, adhesive behavior, and robotic handling are part of the engineering specification—not cosmetic details.

PET lamination is valuable when it solves a defined manufacturing problem. For automated EV battery production, I recommend validating the complete PET + mica + adhesive + die-cut edge system on the real assembly process before freezing the production design.
