Aerogel TDS
| Performance | FQ Aerogel Series | ||||
| Ceramic Fiber Aerogel Felt | PAN Based Aerogel Felt | Wet Glass Fiber Aerogel Felt | |||
| Thickness | 1~10Mm | 1~10Mm | 0.5~6.0Mm | ||
| Wide | 1400±60Mm(Customized) | 1400±60Mm(Customized) | 1400±100Mm(Customized) | ||
| Color | White | Black | White | ||
| Maximum Operating Temperature | 650℃ | 800℃(Anaerobic) | 650℃ | ||
| Density | 280±30Kg/M3 | 200±20Kg/M3 | 200±20Kg/M3 | ||
| Thermal Conductivity | ≤0.023W/M*K@25℃ | ≤0.025W/M*K@25℃ | ≤0.023W/M*K@25℃ | ||
| ≤0.030W/M*K@100℃ | ≤0.030W/M*K@100℃ | ≤0.030W/M*K@100℃ | |||
| ≤0.036W/M*K@300℃ | ≤0.036W/M*K@300℃ | ≤0.040W/M*K@300℃ | |||
| ≤0.072W/M*K@500℃ | ≤0.072W/M*K@500℃ | ≤0.071 W/M*K@500℃ | |||
| Combustion Level | UL94-V0 | UL94-V0 | UL94-V0 | ||
| Hydrophobicity | ＞98% | ＞98% | ＞98% | ||
| Biosecurity | RoHs/REACH/ELV | RoHs/REACH/ELV | RoHs/REACH/ELV | ||
| Insulation Effect | 1Mm：Min≥385℃； 2Mm：Min≥440℃ | 1Mm：Min≥385℃； 2Mm：Min≥440℃ | Customized | ||
Silicone foam TDS
| Performance Items | Reference Standards | unit | FQ Silicone Foam Series | ||||
| FQ-SL-180T | FQ-SL-370T | FQ-SL-550T | |||||
| Density | ASTM D1056 | kg/m3 | 180 | 370 | 550 | ||
| Hardness | GB/T 531.1 | Shore OO | 25 | 50 | 70 | ||
| 25% compressive stress | ASTM D1056 | kPa | 12 | 80 | 140 | ||
| Tensile Strength | ASTM D412 | kPa | >105 | >300 | >500 | ||
| Elongation | ASTM D412 | % | >75 | >85 | >90 | ||
| Water absorption | Internal methods | % | <5 | <5 | <5 | ||
| Flame Retardantgrade | UL94 | / | V0 | V0 | V0 | ||
| Environmental friendly | / | RoHS | RoHS | RoHS | RoHS | ||
| Insulation resistance | GB/T 1408 | MΩ | ≥500 | ≥500 | ≥500 | ||
| Thermal conductivity | ASTM C518 | W/（m·k） | <0.06 | <0.09 | <0.11 | ||
※The above data represents the overall test averages. Please contact our company for additional product information.
PC Board TDS
| Performance | FQ PC Series |
| Density | 1.20-1.22g∕cm³ |
| Water Absorption, 24hrs | ＜0.35﹪ |
| Tensile Strength | 7500PSI 52MPa |
| Elongation At Break | ＞110﹪ |
| Impact Strength (0.76mm) | 12ft-Ib 30J |
| Tear Strength | ＞32g∕mil |
| Vicat Softening Point | 150℃ |
| Dielectric Strength(0.25mm) | 1350V∕mil |
| Volume Resistivity 25°c, 50rh | ＞1.0×1016Ω·cm |
| Film Thickness≥ 0.25 Mm | UL94 V-0 |
※The above data represents the overall test averages. Please contact our company for additional product information.
Mica Pad TDS
| Performance | FQ Mica Series | ||
| Muscovite | Phlogopite | ||
| Mica Content | 92% | 92% | |
| Resin Content | 0 | 8% | |
| Density | 1.8-2.45g/cm3 | 1.8-2.45g/cm3 | |
| Flexural Strength | >200MPa | >200MPa | |
| Water Absorption | <1% | <1% | |
| Electric Strength | >20KV/mm | >20KV/mm | |
| Thermal Weight Loss at 500°C | <1% | <1% | |
| Thermal Weight Loss at 700°C | <2% | <2% | |
| Flame Retardant Rating | UL94 V-0 | UL94 V-0 | |
※The above data represents the overall test averages. Please contact our company for additional product information.
Your Strategic Partner for Precision, Scale, and Reliability
IATF 16949 Certified & Zero-Defect Management
We deliver critical safety components with a >99.8% pass rate, meeting the rigorous quality demands of global Tier 1 suppliers. PPAP, SPC, & FMEA processes are standard.
High-Volume Production, From Millions to GWh-Scale

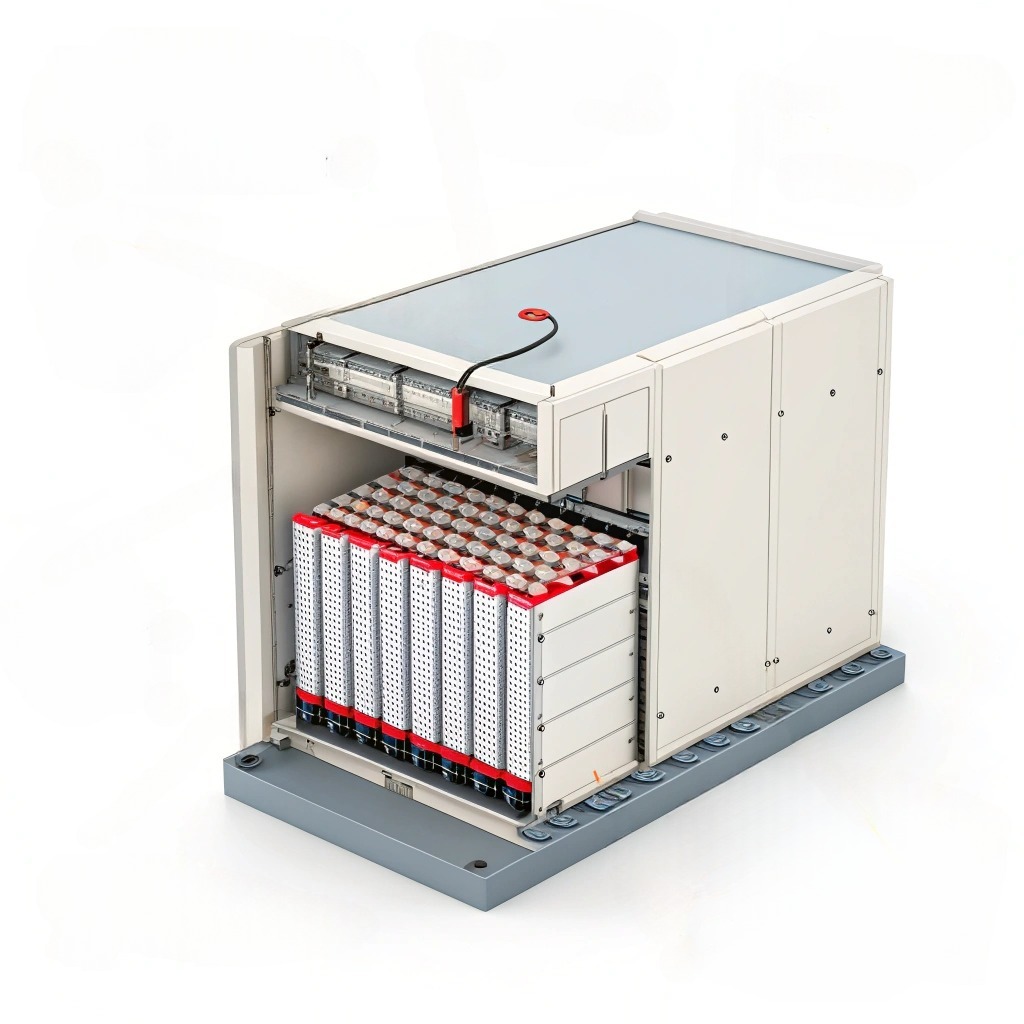

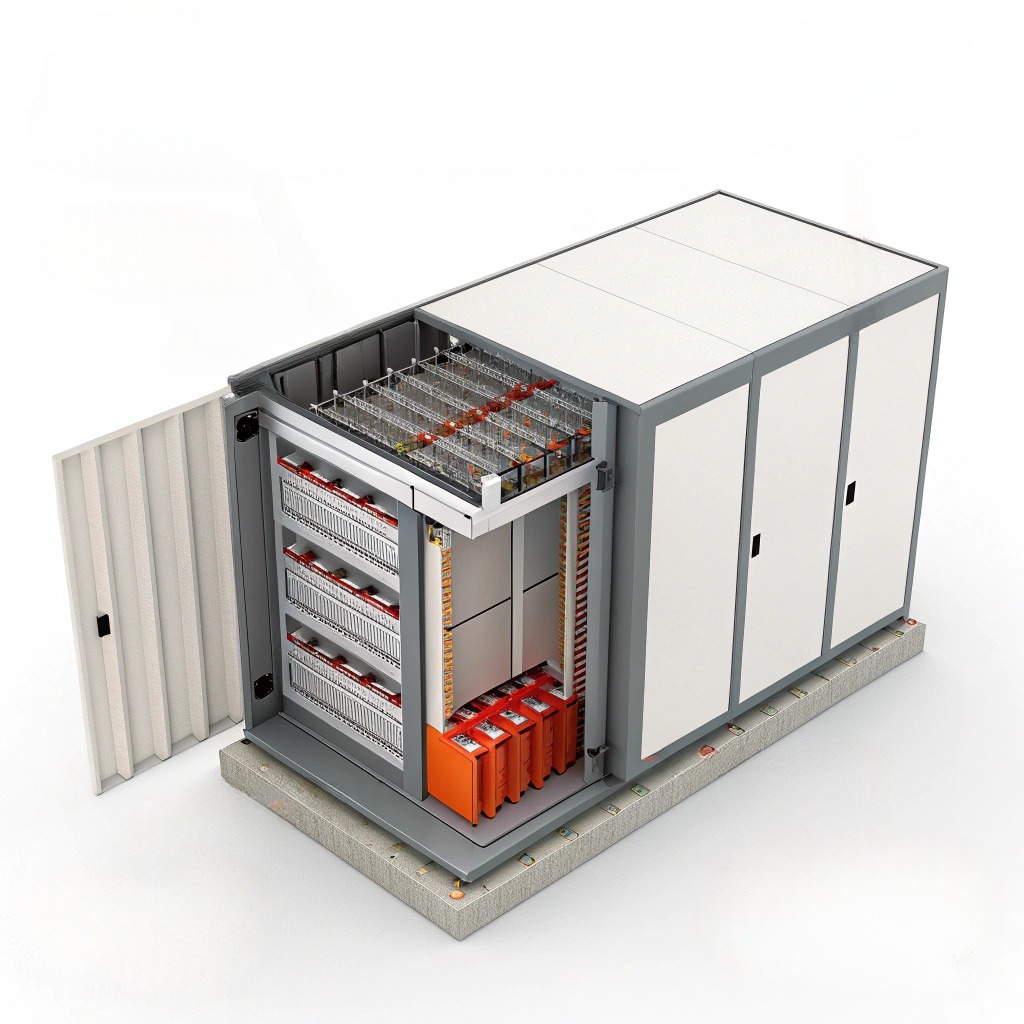

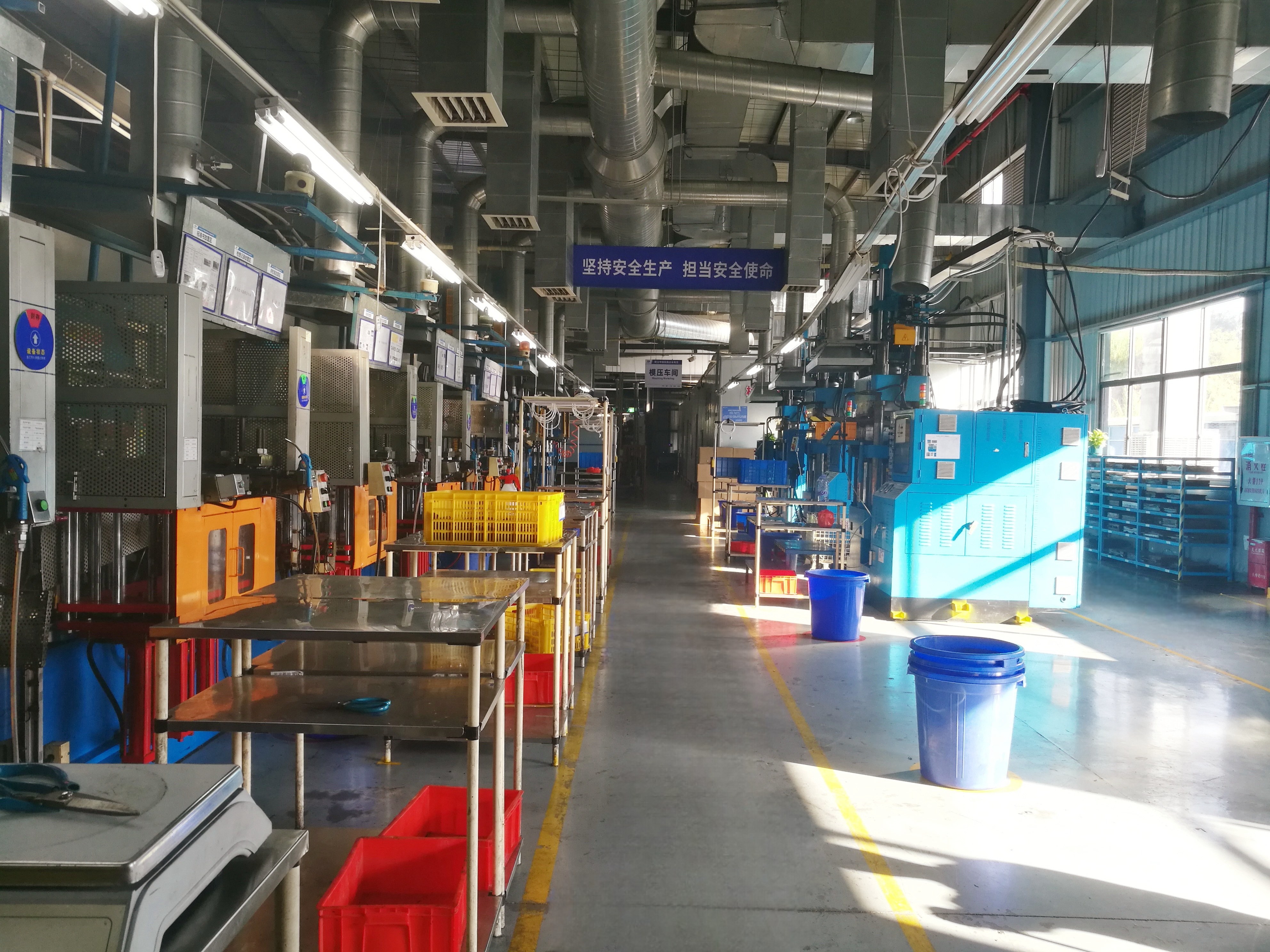

With 12 intelligent production lines, we support monthly orders in the millions and meet the long-term, high-volume demands of GWh-scale energy storage projects.
Precision Processing for Complex Designs
Our 134 patented technologies enable burr-free, ±0.1mm precision die-cutting and multi-layer composite molding, solving common industry pain points and enabling complex designs.
Collaborative Engineering & Material Optimization
We are material experts, not just processors. Our engineers partner with you to select and customize the optimal silicone foam solution, balancing performance and cost-effectiveness.
FQ delivers end-to-end service excellence from prototype to mass production. Our dedicated engineering team provides 24/7 technical support, rapid DFM analysis within 8 hours, and flexible small-batch validation runs. Every project is backed by vertically integrated manufacturing and 100% traceability.

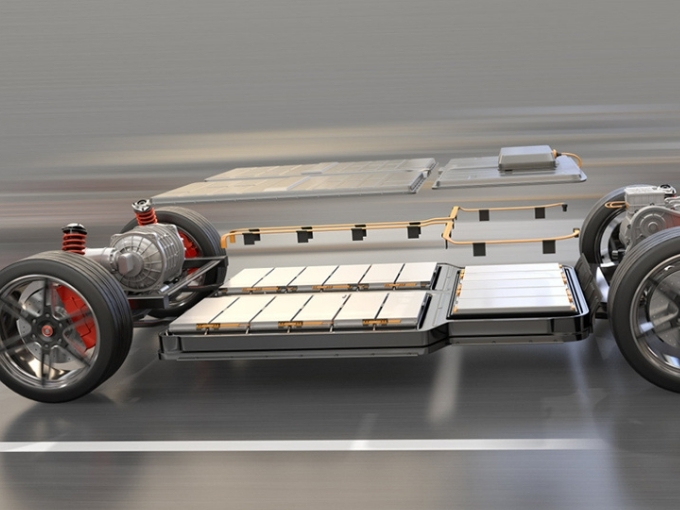

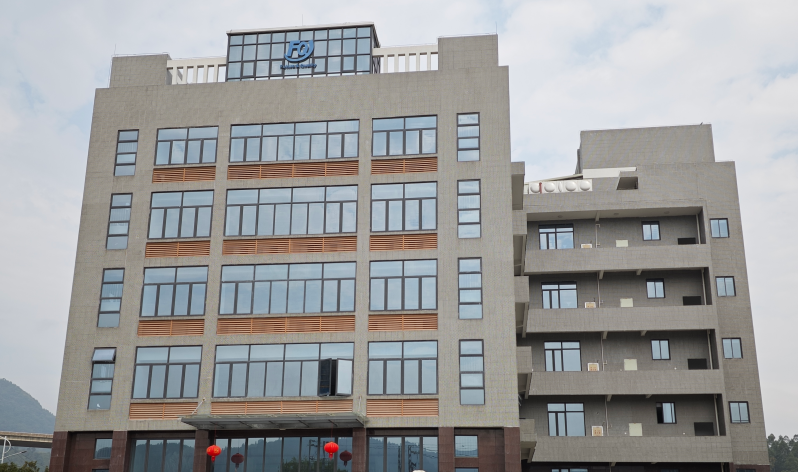

FuQiang, founded in 2005, is a manufacturer specializing in high-performance automotive sealing and functional components. With 8 factories across China and 2 overseas facilities, we provide innovative solutions for EV battery systems, NVH, chassis, and wire harness applications. Our core strengths lie in advanced material R&D, precision manufacturing, and rigorous quality control, supported by 134 patents and international certifications including IATF 16949. Committed to "Future & Quality," we serve global clients and delivering reliability and excellence in every product.

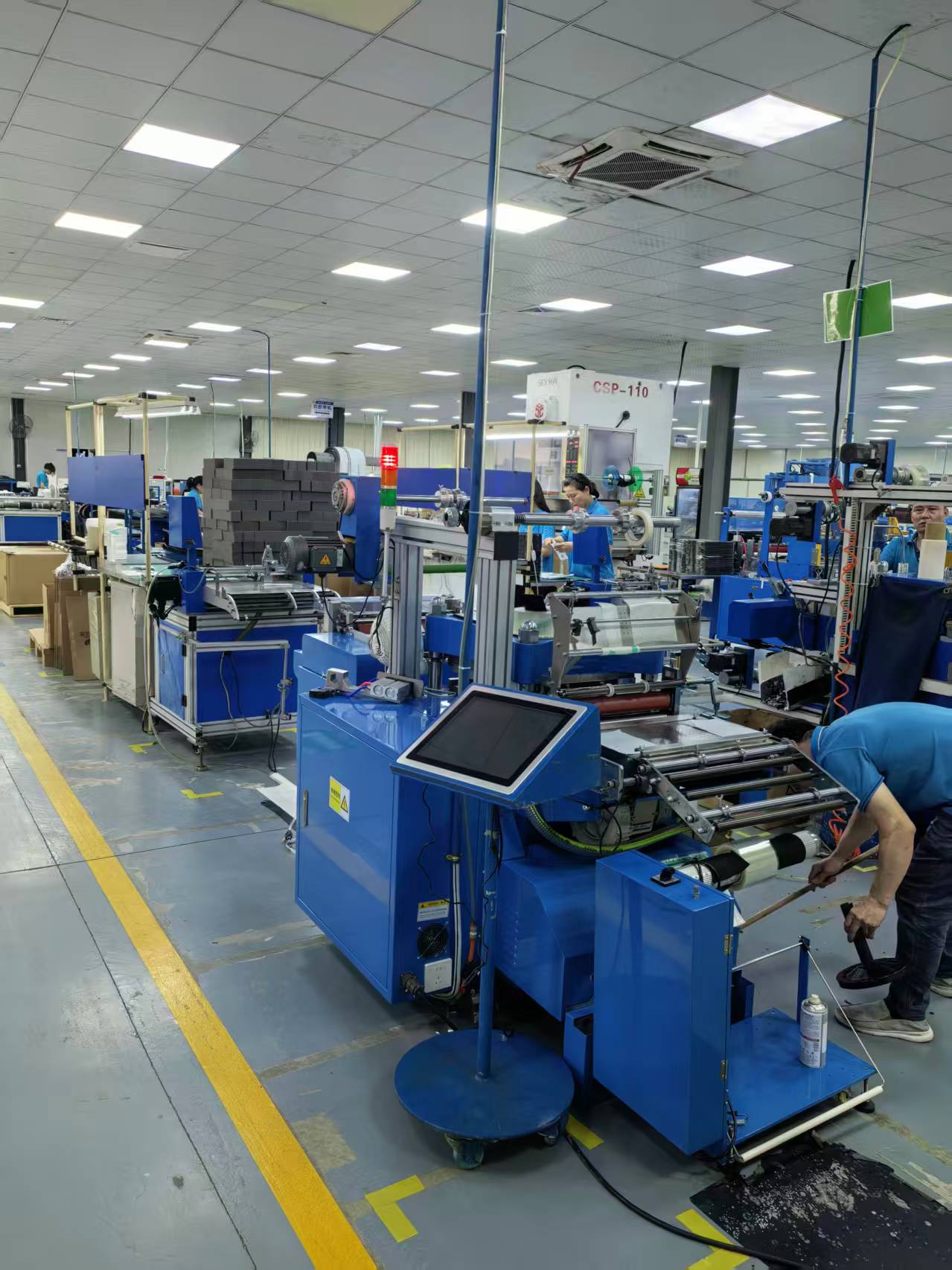

Clean edges and complex geometries with ±0.1mm tolerance.
Custom 3D shapes for integrated seals and components.
Continuous profiles for custom-length seals and tubing.
Rapid Prototyping: Samples delivered in 1-2 weeks to accelerate your design validation cycle.

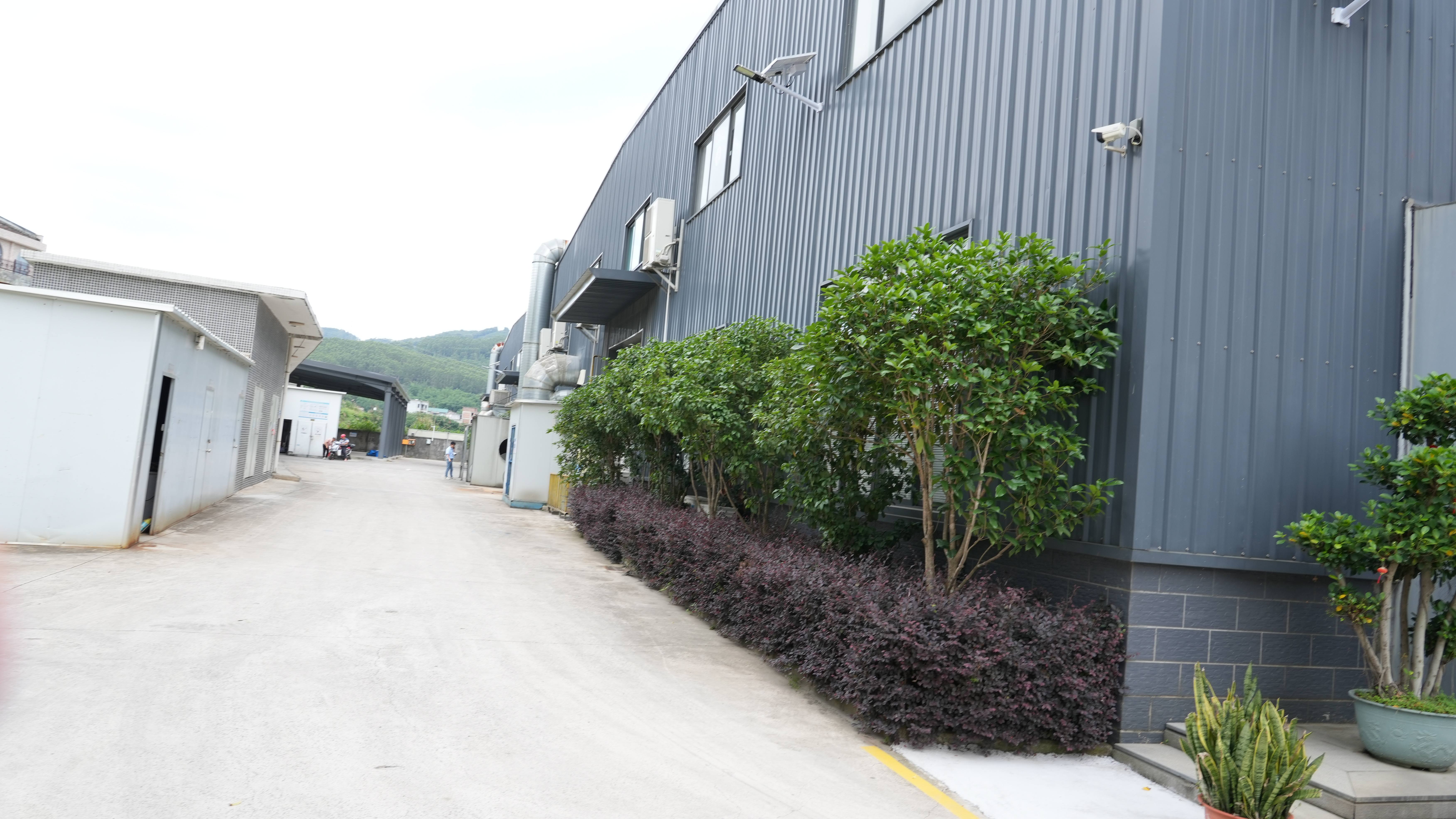

Our distributed global network ensures supply chain redundancy and enables a 72-hour regional response. With six factories in China and bases in Uzbekistan, Thailand, and the U.S. (plus Mexico and Brazil under construction), we provide reliable, on-time delivery for your long-cycle projects while offering a significant cost advantage over local European or American suppliers.
