You can put in an auto wire harness in your car, even if you have never done this before. Safety is important at every step, so always look out for these common problems:
Pulling wires too much, which can make them break or hurt the insulation
Wires getting cut by sharp edges or moving parts
Bad connections or rust at connectors
Wires going the wrong way, which can rub or get squeezed
Most people who are new take about 20 to 40 hours to finish, working slowly and carefully. Go slow, follow each step, and you will see good results with your car project.
Pick a wire harness that fits your car. Make sure it is safe and strong. Get your tools and workspace ready before you start. This helps you avoid mistakes and work faster. Plan where the wires will go. Keep wires away from hot spots, sharp things, and moving parts. This keeps them safe for a long time. Connect wires the right way, like crimping or soldering. Always check your connections with a multimeter before you finish. Use sleeves, zip ties, and labels to hold and protect wires. This makes fixing things later easier and keeps your car safe.
Choosing an Auto Wire Harness
Selecting the Right Harness
Getting the right auto wire harness makes things easier. The harness should fit your car’s make and model. Check your car manual or search online for the right specs. If you want a towing wiring harness, make sure it works with all the features you need, like brake lights and turn signals.
Here are some things to think about:
Pick wires, connectors, and insulation made from good materials. This helps the wiring last longer and keeps it safe from heat, water, and shaking.
Make sure the harness matches your car’s electrical system. Look at the pin count, connector type, and temperature rating.
Choose a harness that works with all your car’s functions, like headlights, GPS, or airbags.
If you need a towing wiring harness, get one that can handle more power and stands up to tough weather.
Tip: Custom wiring harnesses are good if you have special needs or an old car. Fuzhou Fuqiang Precision Co., Ltd. has many wiring harness options and custom harnesses.
You should also look for certifications like ISO 9001 and IATF 16949. These show the harness meets high quality rules.
Factor
What to Check For
Electrical
Current and voltage ratings, signal strength
Environmental
Heat, water, chemical resistance, shaking
Mechanical
Flexibility, scratch resistance, strength
Material
Copper or aluminum wires, strong insulation
Connector
Locks, seals, easy to use and fix
Design & Routing
Right size, length, neat bundling
Standards
Meets ISO, SAE, or other car standards
Tools and Materials Needed
You need the right tools and materials to put in a towing wiring harness or another wiring harness. Here is a list to help you:
Wire cutters and strippers to get wires ready.
Crimping tools to attach ends and connectors.
Soldering iron to make strong, lasting joins.
Heat shrink tubing and electrical tape for covering wires.
Multimeter to test wires and connections.
Zip ties and clamps to keep wires neat and safe.
Protective sleeves to stop wires from getting cut.
Note: Always get all your tools and materials before you start. This saves time and helps you not make mistakes.
With the right harness and tools, you can put in a towing wiring harness or any wiring system. Go slow, check your work, and you will do a good job.
Preparing Your Car
Safety Steps
Before you start working on your car’s wiring, you need to make sure you stay safe. Here’s what you should do:
Set up a clean, well-lit workspace. Make sure the area is dry and not conductive to avoid accidents.
Disconnect the car battery. Turn off your car first, then remove the negative terminal, followed by the positive. This step keeps you safe from shocks.
Check the new wire harness for any damage. Look for broken wires or cracks in the insulation before you install it.
Plan your wire routes. Keep wires away from sharp edges, moving parts, and hot areas like the engine or exhaust.
Use clips, grommets, and zip ties to secure wires. This helps prevent rubbing, tangling, or sagging.
Pick the right method for joining wires. Crimping and soldering both work, but choose what you feel comfortable with.
Protect wires with heat shrink tubing and rubber sleeves. This keeps them safe from heat and short circuits.
Make sure connectors fit tightly. Loose connections can cause electrical problems in your car.
Tip: Always reserve a little extra wire length. This makes future repairs or changes much easier.
Removing the Old Harness
Taking out the old wire harness from your car takes patience. Follow these steps to avoid mistakes:
Disconnect the battery again if you haven’t already. Always start with the negative terminal.
Inspect the old harness. Look for frayed wires, melted spots, or exposed metal. Take notes or photos to help with reinstallation.
Organize your tools and workspace. Keep everything you need close by for a smooth process.
Gently remove wires and connectors. Don’t yank or force anything. If a connector feels stuck, wiggle it gently.
Label or photograph each connector as you go. This helps you match everything up when you install the new harness.
Use the right tools, like wire cutters and a multimeter, to avoid damaging your car’s wiring.
After you remove the harness, test the connections. Use a continuity test or wiggle test to make sure everything works.
Note: When you finish, recycle the old harness properly. Many parts contain copper and plastic that can be reused. Recycling helps protect the environment and keeps your vehicle project eco-friendly.
Planning the Installation
Routing and Mounting
It is important to plan how you put in the wiring. This helps your wiring last longer and work right. Lay out the wire harness on the floor first. You can see how the circuits are grouped. You will notice if you need to move or add wires. Label each wire and bundle before you start. This step stops confusion later.
When you put the harness in your car, split big bundles into smaller ones. Each small bundle goes to a different spot. Use grommets when wires go through metal holes. Grommets keep wires safe from cuts. Keep wires at least six inches away from hot parts. If you must go closer, use heat shields. Secure wires away from moving parts like fans and steering columns. This keeps wires from getting hurt when you drive.
If you run wires under the car, make sure they do not touch the exhaust, driveshaft, or suspension. Stay away from weld pinch points. Wrap the harness with fabric wire wrap or flexible wire loom. This keeps wires safe and makes them easy to reach later. You can use sound deadener to hold wires on floors and trunks. You do not need clamps for this. Quick-disconnect plugs and ground terminal strips help with fixing and checking wires fast. Always plan so you can reach wires easily later.
Tip: Tie up unused circuits. You may need them for upgrades or repairs in the future.
Organizing Wires
Organizing wires helps you work faster and keeps wiring safe. Pick wires with thick or heat-resistant insulation near hot spots. Measure and cut wires to the right length. Think about bends and places that move, like doors. Use cable ties and clips close together to hold wires. This stops wires from sagging or moving.
Do not make sharp bends. Make sure wires do not hang loose. Use strong joints, crimps, and solder in places that move a lot. Grommets and strain reliefs help in spots that bend. Always think about heat, wetness, and chemicals when you pick materials and plan paths.
Label each wire so you know what it is. Use sticky labels, heat-shrink tubing with words, or tiptags. These ways make fixing wires easier and stop mix-ups. Modern label printers and software help you make good labels. Test small bundles as you build them with a multimeter. Hold multi-pin connectors with brackets and zip-ties. Put them where you can reach them later.
Step
What to Do
1. Plan
Picture the layout, avoid sharp corners and heat
2. Measure
Cut wires to fit, leave room for bends
3. Secure
Use ties, clips, and brackets
4. Protect
Add sleeves, shrink tubing, and grommets
5. Label
Use clear, strong labels
6. Test
Check wires with a multimeter
7. Finalize
Change temporary ties to permanent ones
Note: Doing each step helps you not make mistakes. It also makes your wiring easier to fix later.

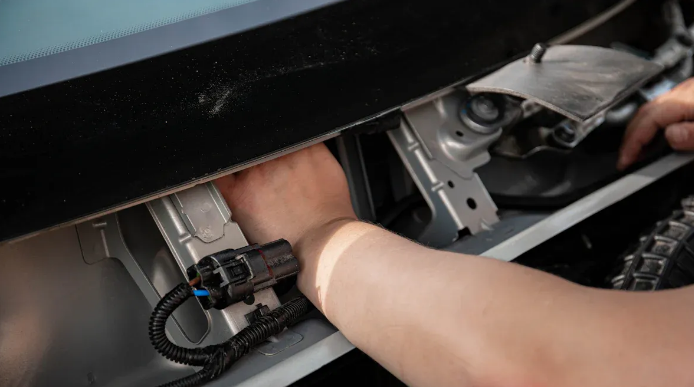

Auto Wire Harness Installation Steps
Connecting the Harness
Now you can start putting in your auto wire harness. This job may seem hard, but you can do it step by step. If you want to add a towing wiring harness or change your car’s main harness, follow these steps for a good install:
Check Your Harness and Diagram First, make sure you have the right auto wire harness for your car. Look at your wiring diagram. The diagram shows where each wire should go. This helps you not make mistakes. If your car is a certain model, use the right diagram for it. Here are some examples for popular cars:
Car Model / Make
Years Covered
Description
GM Chevy Mid-Size Cars
1964-1988
Wiring Diagrams Repair Guide
Toyota Avalon, Camry, Camry Solara
2001-2006
Electrical Wiring Diagram Guide
Kia Sedona
2002-2006
Wiring Diagrams Repair Guide
Volkswagen Cars
2000-2005
Main Wiring Diagram
Tip: Factory service manuals have the best wiring diagrams. These help you match every wire and connector.
Prepare Your Workspace and Tools Get all your tools before you start. You need wire cutters, strippers, crimping pliers, a soldering iron, heat shrink tubing, zip ties, a multimeter, and your new towing wiring harness. Lay out the harness and tools so you can reach them easily.
Connect the Harness
For a vehicle-specific harness, find the connector in your car. Plug in the harness and listen for a click.
For a universal towing wiring harness, match each wire to the right car wire. Strip the ends of the wires. Use crimp connectors or solder the wires together. Slide heat shrink tubing over the joint before you connect. After connecting, use a heat gun to shrink the tubing and seal it.
Attach the ground wire to a clean metal spot on the car.
Test the Connections Put the battery back in. Use a multimeter to check voltage and continuity at each spot. Turn on your car’s lights, signals, and towing wiring harness features. Make sure everything works. If something is wrong, check your wiring and fix any loose or wrong wires.
Final Check Look at every connection. Make sure they are tight, with no bare wires or loose ends. If you see a problem, fix it now. Testing before you finish saves time and trouble later.
Note: Always use the wiring diagram for your car. This keeps your install safe and working right.
Securing and Protecting Wires
After you connect auto wire harness, you need to keep the wires safe. This step helps your car and towing wiring harness last longer.
Bundle and Route Wires Group wires by what they do and run them along safe paths. Stay away from hot engine parts, sharp edges, and moving parts. Use grommets when wires go through metal holes.
Use Protective Materials Here is a table of common protective materials and what they do:
Protective Material Type
Key Properties
Best Use
Corrugated Flexible Conduit
Flame retardant, high melting point
Engine compartments
Self-Closing Sleeving
Easy to install, wear resistant
Bending areas
Braided Wrap
Flame retardant, high temp guard
High-temp zones
Heat Shrink Tubing
Seals against liquids, insulates
Wire joints
Expandable Sleeving
Flexible, durable
Harness tubes
Fiberglass Sleeve
Extreme heat resistance
Motors, generators
Zip Ties & Tape
Secure, bundle, protect
All harness branches
Use zip ties to hold wires in place. Put them every few inches to stop wires from moving.
Wrap wires with tape or use sleeves for extra safety from heat, water, and rubbing.
For towing wiring harnesses under the car, use conduit or strong sleeves to protect from road debris.
Label and Organize Label each wire or connector. Use sticky labels or heat-shrink labels. This makes repairs or upgrades easier later.
Test Again Before Finalizing Before you finish, test all wires one more time. Use your multimeter to check for voltage and continuity. Turn on all lights and features on your towing wiring harness. Make sure everything works as it should.
Tip: If you find a problem, fix it before you tie everything down. It is much easier to fix now than later.
Finish Up Put back any covers or panels you took off. Double-check that all wires are safe and protected. Your auto wire harness install is now done!
By following these steps, you make sure your wiring is safe, neat, and ready to use. Whether you add a towing wiring harness or a full auto wire harness, careful work gives you the best results.
Testing and Troubleshooting the Car
Testing Electrical Functions
After you put in the new wiring harness, check if everything works. First, look at all the wires. Make sure each wire has the right color and length. Check that the contacts are clean. Look for wires that are broken or have missing insulation. Next, use a multimeter to test for short circuits. Also, check if the wires are connected from end to end. This helps you find problems before turning on the car.
Check the ground system too. Attach all ground wires to clean metal with no paint. If the ground is loose or dirty, lights may flicker or not work. Try taking off each ground wire one at a time while the car is running. Watch for changes. This helps you find weak grounds or wires that send power the wrong way.
Here is a checklist for testing:
Turn on all lights, signals, and other features.
Use a multimeter to check voltage at every spot.
Do a voltage drop test at main power spots.
Test each circuit to see if it connects.
Look at all connectors to make sure they fit tight and the pins are right.
Pull each connection gently to see if it is strong.
For electric cars, do a high-voltage insulation test.
Tip: Always put labels on your wires and connections. This makes fixing problems easier later.
Common Mistakes and Solutions
Even if you are careful, wiring mistakes can happen. Here are some common problems and how to fix them:
Mechanical damage: Wires can get worn out from shaking or rubbing. Use grommets and sleeves to keep wires safe from sharp or moving parts.
Electrical faults: Bad insulation or loose connectors can cause shorts or open circuits. Always check your connections and use good crimping tools.
Incorrect grounding: Weak or missing grounds can make lights or other things stop working. Clean the metal before you attach ground wires. Use star washers for a strong hold.
Wrong wiring connections: Mixing up wires for brake, tail, or turn signals can cause things to work wrong. Follow wiring diagrams and use wires with different colors.
Poor wire protection: Wires without covers can get hurt by heat, water, or shaking. Cover all wires with tubing or sheathing and check them often.
If you find electrical problems after you finish, try these steps:
See how big the problem is. Decide if you need to fix one part or change the whole harness.
Look at all wires for damage, rust, or loose ends.
Test each circuit for a good connection and the right voltage.
Reconnect any loose wires and check if everything works.
If you still have trouble, ask a professional for help.
Problem
Symptom
Solution
Loose ground
Flickering or dead lights
Clean and secure ground connections
Damaged insulation
Short circuits
Replace or protect wiring
Poor connector fit
Intermittent function
Re-crimp or replace connectors
Mixed-up wiring
Wrong lights/signals
Follow diagrams, use color codes
Note: Checking and testing your wiring often helps you find small problems before they get worse.
You now know how to do each step for a safe auto wire harness installation. Planning ahead, picking strong materials, and following safety rules help a lot.
Pick a harness that fits your car and lets you add upgrades later.
Use good parts so the wiring lasts longer and breaks less.
Check every connection before you finish the job.
Try not to make mistakes like bad crimping or using the wrong connectors.
Look over your work again. If you are not sure, talk to a professional. These steps help you finish the job well and keep your car working right.
FAQ
How long does it take to install an auto wire harness?
Most people finish in 20 to 40 hours. If you work slowly and check each step, you can avoid mistakes. Take your time and you will get good results.
Can I install a wire harness if I am a beginner?
Yes, you can! Follow each step, use the right tools, and read your car’s wiring diagram. Patience and careful work help you succeed.
What should I do if a wire does not reach?
Try to reroute the wire for a better fit. If it still falls short, use a proper extension with matching connectors. Always cover the joint with heat shrink tubing for safety.
How do I know if my connections are good?
Use a multimeter to check voltage and continuity. Tug each connection gently. If nothing moves and the readings look right, your connections are solid.
Where can I find quality wire harnesses?
You can check Fuzhou Fuqiang Precision Co., Ltd. for high-quality, certified auto wire harnesses. They offer custom solutions and reliable materials for many car models.
Tip: Always choose harnesses that meet ISO and IATF standards for the best safety and performance.
