Introduction
Rubber tube extrusion is a fundamental process in the manufacturing industry, playing a crucial role in producing a wide array of rubber products used in various applications. Understanding this process is essential for professionals in the field, as it impacts the quality and performance of the final products. This article delves into the intricate details of rubber tube extrusion, shedding light on each step involved and the science behind it.
The process of rubber extrusion involves transforming raw rubber materials into usable products through a combination of heat, pressure, and shaping tools. This method is widely adopted due to its efficiency and ability to produce complex profiles with consistent cross-sectional shapes. By exploring the nuances of this process, manufacturers can optimize production methods, reduce costs, and improve product quality.
Materials Used in Rubber Tube Extrusion
Selecting the appropriate rubber material is vital for the extrusion process. Commonly used materials include natural rubber, styrene-butadiene rubber (SBR), ethylene propylene diene monomer (EPDM), and nitrile rubber (NBR). Each of these materials offers distinct properties that make them suitable for specific applications. For instance, EPDM is known for its excellent resistance to weathering and ozone, making it ideal for outdoor applications.
The choice of material affects not only the extrusion process but also the performance characteristics of the final product. Factors such as tensile strength, elasticity, thermal stability, and chemical resistance must be considered. Advanced formulations and compounding techniques allow for customized material properties, catering to the specific needs of different industries.
The Extrusion Process Explained
1. Compounding and Mixing
The extrusion process begins with compounding, where raw rubber is mixed with various additives such as fillers, curing agents, antioxidants, and pigments. This step is crucial for achieving the desired physical and chemical properties in the final product. The mixing is typically performed using an internal mixer or a two-roll mill to ensure a homogeneous blend.
Proper compounding enhances the rubber's processability and end-use performance. For example, adding carbon black can improve tensile strength and abrasion resistance, which is essential for tubes used in high-wear environments. Moreover, the dispersion of additives must be uniform to prevent defects during extrusion and curing.
2. Mastication
Mastication is the process of breaking down the rubber's molecular chains to reduce its viscosity, making it easier to process. This is achieved through mechanical shearing in equipment like a rubber kneader. Mastication enhances the flow characteristics of the rubber, allowing for more precise extrusion.
Controlling the degree of mastication is essential, as over-mastication can lead to excessive breakdown of the polymer chains, negatively affecting the mechanical properties of the final product. Therefore, process parameters must be carefully monitored to maintain the optimal balance between processability and performance.
3. Extruder Feeding
The masticated and compounded rubber is then fed into the extruder. The feeding system must ensure a consistent supply of material to prevent fluctuations in the extrusion process. Feed rollers or a screw feeder can be used, depending on the extruder design and material characteristics.
Consistent feeding is critical for maintaining product dimensions and quality. Inconsistent feed rates can cause variations in tube wall thickness, leading to potential weaknesses or failures in application. Advanced feeding systems often incorporate feedback controls to adjust for any changes in material flow.
4. Extrusion Through the Die
As the rubber moves through the extruder barrel, it is heated and pressurized by the rotating screw. The material is then forced through a die, which shapes it into the desired tube profile. The die design is a critical aspect of the process, as it determines the cross-sectional geometry of the extruded tube.
Die swell, a phenomenon where the extruded rubber expands upon exiting the die, must be accounted for in die design. Engineers use flow simulation and empirical data to predict and compensate for die swell, ensuring the extruded tube meets the required dimensions.
5. Curing and Vulcanization
After extrusion, the rubber tube undergoes curing or vulcanization, which involves heating the rubber to initiate cross-linking of the polymer chains. This step imparts strength, elasticity, and thermal stability to the rubber. Curing can be performed using continuous vulcanization methods such as salt bath curing, microwave curing, or hot air tunnels.
The curing conditions, including temperature and time, must be carefully controlled. Under-curing can result in insufficient cross-linking, leading to poor mechanical properties, while over-curing can cause degradation of the material. Advanced curing systems often use real-time monitoring to ensure optimal cross-linking.
6. Cooling and Sizing
Post-curing, the rubber tube is cooled to stabilize its dimensions and solidify its shape. Cooling can be achieved through air cooling or water baths. Sizing plates or vacuum calibration systems may be used to ensure the tube maintains precise dimensions during cooling.
Dimensional accuracy is crucial, especially for tubes that must meet tight tolerances for fit and function in applications like automotive hoses or medical tubing. The cooling rate must be controlled to prevent internal stresses that could lead to warping or dimensional instability.
7. Cutting and Finishing
The final step involves cutting the extruded and cured rubber tube to the required lengths. This can be done using automated cutting machines that provide precise length measurements. Finishing operations may include surface treatments, inspections, and the addition of fittings or reinforcements, depending on the product's intended use.
Quality control inspections ensure that the tubes meet all specified requirements. Tests for tensile strength, elongation, hardness, and dimensional accuracy are conducted to verify product performance. Adhering to stringent quality standards is essential for applications where reliability is critical.
Technological Advances in Rubber Extrusion
Recent advancements in rubber extrusion technology have focused on improving efficiency, precision, and environmental sustainability. Computer-controlled extrusion equipment allows for precise control over processing parameters, resulting in higher quality products with less waste. Innovations in die design, such as the use of computational fluid dynamics (CFD), have improved flow characteristics and reduced defects.
Additionally, developments in material science have led to novel rubber compounds with enhanced properties. For example, thermoplastic elastomers (TPEs) can be processed using extrusion techniques and offer the combined advantages of plastics and rubbers. These materials are recyclable, aligning with growing environmental concerns.
Applications of Extruded Rubber Tubes

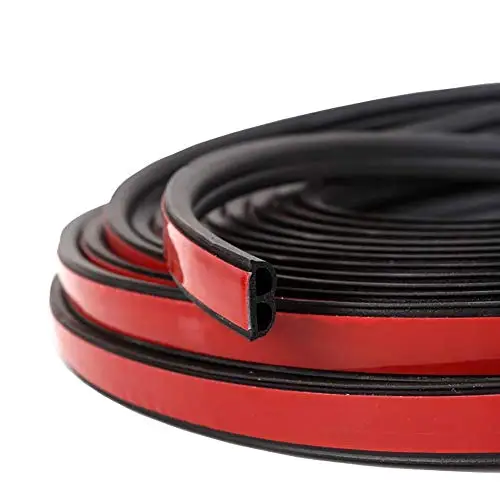

Extruded rubber tubes are utilized across various industries due to their versatility and customizable properties. In the automotive sector, they serve as hoses for fluids, air ducts, and sealing systems. The medical industry uses rubber tubes for devices that require biocompatibility and flexibility, such as catheters and peristaltic pump tubing.
In industrial applications, rubber tubes are essential for transporting gases and liquids under varying pressure and temperature conditions. The aerospace industry employs them in systems where reliability and performance are paramount. Understanding the extrusion process enables the production of tubes tailored to specific application requirements.
Quality Control and Standards
Adherence to international standards and quality control protocols is essential in rubber tube extrusion. Standards such as ISO 9001 for quality management and ISO 14001 for environmental management guide manufacturers in producing high-quality products responsibly. Testing methods outlined by ASTM and other organizations ensure consistent evaluation of material properties.
Implementing rigorous quality control measures reduces the risk of product failure and enhances customer satisfaction. Techniques such as statistical process control (SPC) help monitor production processes in real-time, allowing for immediate corrective actions when deviations occur.
Challenges in Rubber Tube Extrusion
Despite technological advancements, several challenges persist in rubber tube extrusion. Managing material variability, controlling process parameters, and preventing defects like surface imperfections or dimensional inaccuracies require continuous attention. Environmental regulations also demand the reduction of hazardous substances and emissions during manufacturing.
Addressing these challenges involves a combination of process optimization, employee training, and investment in advanced equipment. Collaborative efforts between material suppliers, manufacturers, and customers can lead to innovative solutions that enhance efficiency and sustainability.
Future Trends in Rubber Extrusion
The rubber extrusion industry is poised for significant growth, driven by rising demand in automotive, healthcare, and industrial sectors. Future trends include the integration of Industry 4.0 technologies, such as the Internet of Things (IoT) and artificial intelligence (AI), to enable smarter manufacturing processes. Predictive maintenance and process analytics can minimize downtime and defects.
Sustainability remains a key focus area, with efforts to develop bio-based rubber materials and recyclable compounds. Research into nanocomposites and advanced filler materials aims to enhance the performance characteristics of rubber products. Manufacturers that embrace these trends will be better positioned to meet evolving market demands.
Conclusion
Understanding the process of rubber tube extrusion is essential for producing high-quality, reliable products across various industries. From material selection and compounding to extrusion and curing, each step plays a critical role in determining the final product's performance. Embracing technological advancements and addressing ongoing challenges will enable manufacturers to optimize their processes and stay competitive.
As the industry moves forward, the emphasis on sustainability, efficiency, and innovation will shape the future of rubber extrusion. By staying informed about the latest developments and applying best practices, manufacturers can continue to meet the evolving needs of their customers and the broader market.
