Waterproof Connections with Silicone Seals for Harness Reliability

Introduction Why do electrical systems fail in harsh environments? Often, it is due to moisture ingress. Silicone seals are the barrier that keeps water, dust, and chemicals out of your connectors.

Without proper sealing, corrosion increases resistance, leading to heat and failure. This article explains why silicone is the material of choice for waterproofing.

1. What Is a Wire Seal?

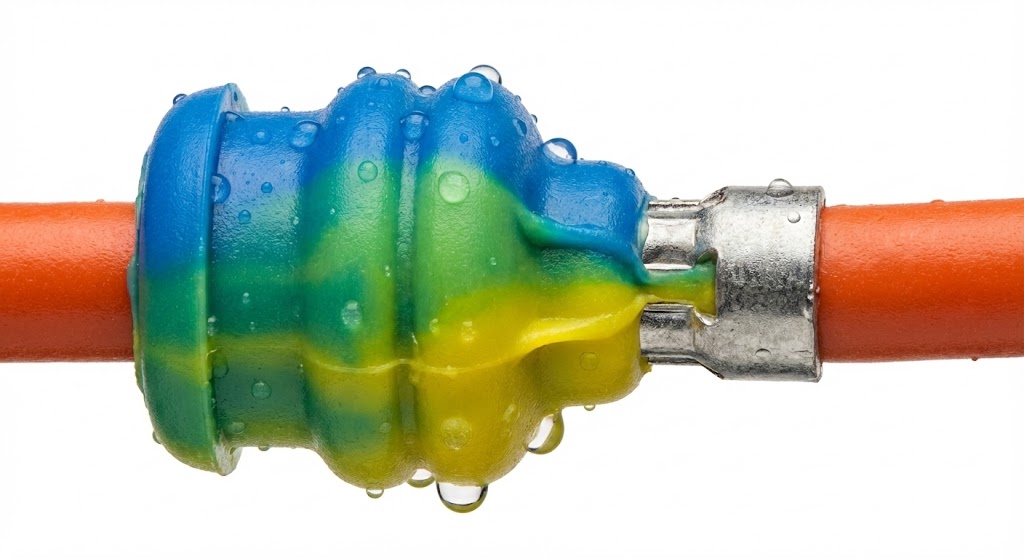

A wire seal (or cable seal) is a small cylindrical rubber plug crimped onto the wire end before it is inserted into a connector housing.

• Material: Primarily Liquid Silicone Rubber (LSR).

• Function: Creates an IP-rated compression seal against the connector wall.

---

2. Why Use Silicone? / Benefits

• Elasticity: Maintains compression over time (Compression Set Resistance).

• Thermal Stability: Functions from -50°C to +200°C.

• Compatibility: Essential for creating a waterproof inline fuse holder wiring harness, ensuring safety in marine or outdoor settings.

3. Types of Seals

Type	Description	Usage
Single Wire Seal (SWS)	Seals individual wires.	Automotive connectors.
Cavity Plug	Solid plug.	Fills unused connector holes.
Mat Seal	A single block with multiple holes.	High-density connectors.

4. How to Choose

Selection depends on wire diameter and fluid exposure.

Criteria	Consideration
Wire Insulation OD	Seal ID must be smaller than Wire OD for interference fit.
Fluid Type	Silicone (Water/Glycol) vs. Fluorosilicone (Fuel/Oil).
Hardness	Typically 30-50 Shore A for flexibility.

For detailed chemical resistance charts, resources from the University of Akron (Rubber Division) are invaluable.

5. How to Install

• Step 1: Strip wire insulation to the correct length.

• Step 2: Slide the seal onto the insulation (do not crimp seal wings into the conductor).

• Step 3: Place the terminal and seal into the crimping tool.

• Step 4: Crimp the insulation wings over the seal to hold it in place.

• Step 5: Insert into the connector until it clicks.

6. Applications

• Automotive: Engine sensors, headlight wiring.

• Marine: Navigation systems exposed to salt spray.

• Industrial: Outdoor sensor arrays.

Conclusion

Silicone seals are the unsung heroes of wire harness reliability. They ensure your electrical connections last as long as the equipment they power. For precision-molded seals, Fuqiang delivers consistent quality.

About Fuqiang

Fuqiang provides comprehensive sealing solutions, from single wire seals to complex grommets, ensuring IP67/IP68 protection for your harnesses.

FAQ

Q: Can I reuse a wire seal? A: No. Once compressed or crimped, the rubber deforms. Always use a new seal for a reliable connection.
